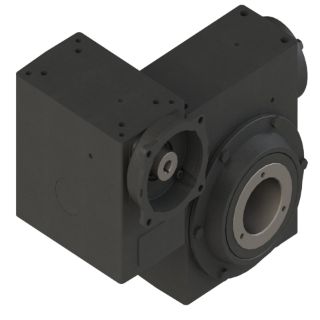

Actual Product May Vary From Image

5205 250/1 WR 143TC STD HUB

Name: 5205 250/1 WR 143TC STD HUB
SKU: 5205 250/1 WR 143TC STD HUB
Availability: OutOfStock

Hub City® PowerCubeX® 0230-40066 5200 Double Reduction Right Angle Standard Worm Gear Reducer, C-Face Quill Input, Hollow Bore Output, 3.18 hp Input, 250:1 Gear, 7 rpm Maximum Output, 15180 in-lb Output Torque Rating

Manufacturer part number: 0230-40066

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

Double Reduction Right Angle Standard

Description

Hub City® PowerCubeX® Worm Gear Reducer, Double Reduction Right Angle Standard, Series: 5200, 250:1 Gear Ratio, 3.18 hp Input, C-Face Quill Input, Hollow Bore Output, 7/8 in Dia Input, 7 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 15180 in-lb Output, 5.16 in Centre Distance, 53.1 % Efficiency, Conventional Oil Lubrication, Cast Iron

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Features

Modular design
Universal mounting dimensions
Alloy shafting

Specifications

Centre Distance:	5.16 in
Efficiency:	53.1 %
Gear Ratio:	250:1
Horsepower:	3.18 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	7/8 in Dia
Input Type:	C-Face Quill
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	7 rpm
Output Type:	Hollow Bore
Series:	5200
Torque Rating:	15180 in-lb Output
