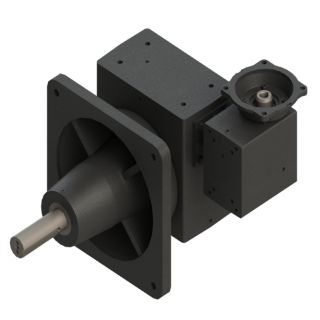

Actual Product May Vary From Image

5208 250/1 WR 143TC STD FLANGE HUB

Name: 5208 250/1 WR 143TC STD FLANGE HUB
SKU: 5208 250/1 WR 143TC STD FLANGE HUB
Availability: OutOfStock

Hub City® PowerCubeX® 0230-40246 5200 Double Reduction Right Angle Standard Worm Gear Reducer With Drop Bearing Mounting Flange, C-Face Quill Input, Shaft Output, 3.18 hp Input, 250:1 Gear, 7 rpm Maximum Output, 15180 in-lb Output Torque Rating

Manufacturer part number: 0230-40246

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

Double Reduction Right Angle Standard

Description

Hub City® PowerCubeX® Worm Gear Reducer, Double Reduction Right Angle Standard, Series: 5200, 250:1 Gear Ratio, 3.18 hp Input, C-Face Quill Input, Shaft Output, 7/8 in Dia Input, 2.188 in Dia x 5.53 in L Output, 7 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 15180 in-lb Output, 5.16 in Centre Distance, 1/2 x 1/4 in Output Keyway, 53.1 % Efficiency, Conventional Oil Lubrication, Cast Iron

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Features

Modular design
Universal mounting dimensions
Alloy shafting

Specifications

Centre Distance:	5.16 in
Country of Origin:	US
Efficiency:	53.1 %
Gear Ratio:	250:1
Horsepower:	3.18 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	7/8 in Dia
Input Type:	C-Face Quill
Keyway Size:	1/2 x 1/4 in Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	7 rpm
Output Size:	2.188 in Dia x 5.53 in L
Output Type:	Shaft
Series:	5200
Torque Rating:	15180 in-lb Output
