5209C SMT

Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.

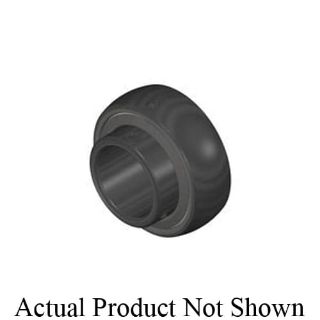

Sealmaster® Ball Bearing Insert, Non-Expansion Standard-Duty Straight Bore, 45 mm Bore, 85.0011 mm OD, 49.2125 mm Width, Double Seal Closure, 35145 N Dynamic/22859 N Static Load, Steel Bearing, Nitrile Rubber Seal, Brass Cage, 3800 rpm Maximum, -20 to 220 deg F, Black Oxide Coated
