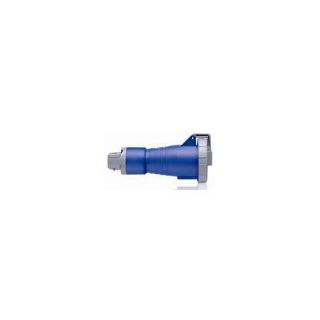

Picture of 520C9W LEV
Actual Product May Vary From Image

520C9W LEV

Leviton® 520C9W Watertight Pin and Sleeve Connector, 120/208 VAC, 20 A, 4 Poles, 5 Wires, Blue
Manufacturer: Leviton Manufacturing
Manufacturer part number: 520C9W
Availability: Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Leviton®

Type

Watertight

Description

Leviton® Pin and Sleeve Connector, Watertight, 120/208 VAC, 20 A, 50/60 Hz Frequency, 4 Pole, 5 Wires, Industrial Grade, IP67/IP69K Enclosure, -40 to 60 deg C, Screw Terminal, Valox® 357, Blue, 42 in Dia x 7.95 in L Dimensions

Application

Industrial Applications

Standards

CE 73/23/EEC | CE 93/68/EEC | CSA C22.2 File No 182.1 | IEC 60309-1/60309-2 | UL 1682 | UL 1686

Features

  • Rugged housing, provides maximum corrosion protection and makes the device more resistant to impact, abuse and temperature extreme
  • Certified for current interrupting at full rated current
  • Contact carrier resists arcing and internal heat build up
  • Zinc-coated steel terminal screws on 20A and 30A devices
  • Dependable, clean brass construction for long life, reliable electrical contact, maximum conductivity, and corrosion resistance
  • Ground, neutral and phase terminals are clearly identified by color coding or letters and numbering on both front and back sides
  • Multiple contact points assure a continuously reliable electrical connection

Specifications

Amperage Rating:20 A
Color:Blue
Country of Origin:CZ
Dimensions:42 in Dia x 7.95 in L
Enclosure:IP67
Frequency Rating:50/60 Hz
Grade:Industrial
Material:Valox® 357
Number of Poles:4
Number of Wires:5
Temperature Rating:-40 to 60 deg C
Terminal Type:Screw
Voltage Rating:120/208 VAC
