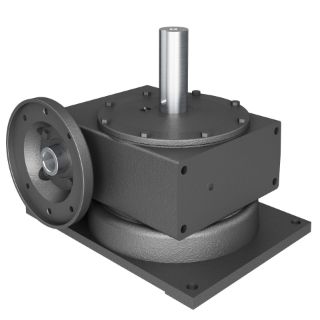

Actual Product May Vary From Image

520V 15/1 CL WR 213TC HUB

Name: 520V 15/1 CL WR 213TC HUB
SKU: 520V 15/1 CL WR 213TC HUB
Availability: OutOfStock

Hub City® 0220-65388 520 Right Angle Single Reduction Style CL Worm Gear Reducer, C-Face Quill Input, Shaft Output, 19.2 hp Input, 15:1 Gear, 117 rpm Maximum Output, 8861 in-lb Output Torque Rating

Manufacturer part number: 0220-65388

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

Right Angle Single Reduction Style CL

Description

Regal Beloit offers a broad selection of right angle worm gear reducers that range from an industry interchange design with modular accessories to cast iron and aluminum designs. These products are intended for a wide variety of applications.

Hub City® Worm Gear Reducer, Right Angle Single Reduction Style CL, Series: 520, 15:1 Gear Ratio, 19.2 hp Input, C-Face Quill Input, Shaft Output, 1-3/8 in Dia Input, 2 in Dia x 5.66 in L Output, 117 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 8861 in-lb Output, 5.16 in Centre Distance, 5/16 x 5/32 in Input, 1/2 x 1/4 in Output Keyway, 85.3 % Efficiency, Conventional Oil Lubrication, Cast Iron

Application

Agriculture, Food, Grain Handling, Packaging Machinery, Cement and Asphalt

Features

Modular design
Universal mounting dimensions
Alloy shafting

Specifications

Efficiency:	85.3 %
Gear Ratio:	15:1
Horsepower:	19.2 hp Input
Input Size:	1-3/8 in Dia
Input Type:	C-Face Quill
Keyway Size:	5/16 x 5/32 in Input, 1/2 x 1/4 in Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Type:	Shaft
Series:	520
