Home / 52120-M2H LEV

52120-M2H LEV

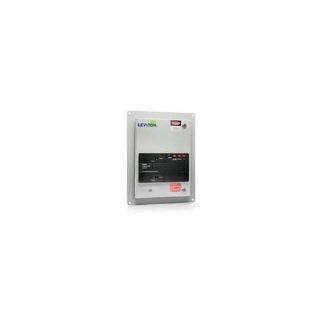

Picture of 52120-M2H LEV
Actual Product May Vary From Image

Product Details

Manufacturer:
Leviton
Manufacturer part number:
52120-M2H
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Leviton®

Type

Type 2 4-Wire

Description

Leviton® 52000 series panel mounted surge protective devices provide up to 7-modes of protection with a variety of devices ranging from 120 VAC 1-phase to 480 VAC multi-phase. Providing modular protection for medium-exposure areas, the 52000 series is one of Leviton® most popular SPD panel lines, with a good mix of value, performance.
Leviton® Surge Panel, Series: 52000, 30 A, 120/240 VAC, 50/60 Hz, 1, 100 kA Short Circuit, 100 kA Peak Surge, Modes of Protection: L-N/L-G/N-G/L-L, LED/Noise Filtering Indicator, Environmental Conditions: -20 to 40 deg C Operating Temperature, -20 to 85 deg C Storage Temperature, 5 to 95% Non-Condensing Humidity, UL 94 V-2 Flammability, NEMA 12, Panel Mount, 14.19 in H x 10.31 in W x 5 in D, Steel, Gray

Application

Commercial and Industrial Applications

Standards

ANSI/IEEE Category C-62.41, C-62.45, cULus Listed | UL Listed | CSA Certified

Features

  • Protection for up to 100000 A of surge current per mode
  • Parallel design ensures continuous power even in the event of loss of surge protection
  • Easily replaceable surge modules
  • AC sine wave tracking provides enhanced EMI/RFI filtering
  • Real time diagnostics monitor power and surge protection status
  • Parallel hardwired, feed through dual wire terminal block, accepts up to 3 AWG wire connection
  • Transient voltage surge suppression module

Specifications

Color:Gray
Country of Origin:MX
Dimensions:14.19 in H x 10.31 in W x 5 in D
Electrical Ratings:30 A, 120/240 VAC
Enclosure Type:NEMA 12
Environmental Conditions:-20 to 40 deg C Operating Temperature, -20 to 85 deg C Storage Temperature, 5 to 95% Non-Condensing Humidity
Frequency Rating:50/60 Hz
Indicator Type:LED/Noise Filtering
Material:Steel
Modes of Protection:3
Mounting Type:Panel
Peak Surge Current:100 kA
Phase:1
Series:52000
Short Circuit Current Rating:100 kA
Wire Size:3 AWG
