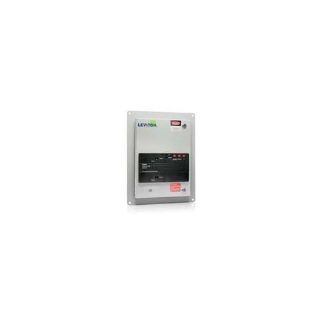

Actual Product May Vary From Image

52120-M3 LEV

Name: 52120-M3 LEV
Brand: Leviton Manufacturing
SKU: 52120-M3 LEV
Availability: OutOfStock

Leviton® 52120-M3 52000 Type 2 5-Wire Surge Panel Protector With Replaceable Surge Module, 30 A, 120/208 VAC, 50/60 Hz, 3 Phase, 3 AWG Wire

Manufacturer: Leviton Manufacturing

Manufacturer part number: 52120-M3

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

Type 2 5-Wire

Alternate Supplier #

Grainger - 25KT05

Description

Leviton® 52000 series panel mounted surge protective devices provide up to 7-modes of protection with a variety of devices ranging from 120 VAC 1-phase to 480 VAC multi-phase. Providing modular protection for medium-exposure areas, the 52000 series is one of Leviton® most popular SPD panel lines, with a good mix of value, performance.

Leviton® Surge Panel Protector, Type 2 5-Wire, Series: 52000, 30 A, 120/208 VAC, 50/60 Hz, 3 Phase, 3 AWG Wire, 100 kA Short Circuit Current, 100 kA Peak Surge, Modes of Protection: 4, LED/Noise Filtering/Audible Alarm Indicator, Environmental Conditions: -20 to 40 deg C Operating Temperature, -20 to 85 deg C Storage Temperature, 5 to 95% Non-Condensing Humidity, NEMA 12, Panel Mount, 14.19 in H x 10.31 in W x 5 in D, Steel, Gray

Application

Commercial Applications

Standards

ANSI/IEEE Category C-62.41, C-62.45 | cULus Listed | UL 1449

Features

Protection for up to 100000 A of surge current per mode
Parallel design ensures continuous power even in the event of loss of surge protection
Easily replaceable surge modules
AC sine wave tracking provides enhanced EMI/RFI filtering
Real time diagnostics monitor power and surge protection status
Parallel hardwired, feed through dual wire terminal block, accepts up to 3 AWG wire connection
Transient voltage surge suppression module

Specifications

Color:	Gray
Country of Origin:	MX
Dimensions:	14.19 in H x 10.31 in W x 5 in D
Electrical Ratings:	120/208 VAC, 30 A
Enclosure Type:	NEMA 12
Environmental Conditions:	-20 to 40 deg C Operating Temperature, -20 to 85 deg C Storage Temperature, 5 to 95% Non-Condensing Humidity
Frequency Rating:	50/60 Hz
Indicator Type:	LED/Noise Filtering/Audible Alarm
Material:	Steel
Modes of Protection:	4
Mounting Type:	Panel
Peak Surge Current:	100 kA
Phase:	3
Series:	52000
Short Circuit Current Rating:	100 kA
Wire Size:	3 AWG
