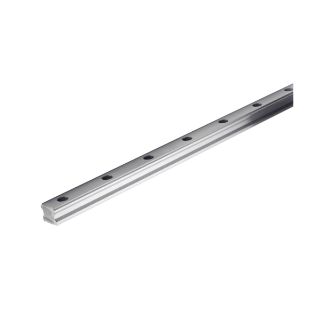

Actual Product May Vary From Image

521H15A+280 THO

Name: 521H15A+280 THO
Brand: Thomson Industries
SKU: 521H15A+280 THO
Availability: OutOfStock

Thomson® 521H15A+280 500 Profile Rail, Standard Bolt Down From The Top Style, 15 mm Rail, 280 mm L x 15.7 mm H

Manufacturer: Thomson Industries

Manufacturer part number: 521H15A+280

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Thomson®

Description

Thomson® Profile Rail, Series: 500, Standard Bolt Down From The Top Style, 15 mm Rail, 280 mm Length, 15 mm Width, 15.7 mm Height, Hex Head Screw, M4 Screw, 5 Rail Holes, 60 mm Mounting Hole Center to Center, 20 mm Mounting Hole to Edge, -40 to 80 deg C, Steel, For Use With: 500 Series Standard Ball Carriages

Standards

RoHS Compliant

Features

Straighter rails through advanced grinding technologies
Simple installation and greater accuracy with joint-free rails up to 3 m
High grade accuracy class

Specifications

Country of Origin:	DE
Height:	15.7 mm
Length:	280 mm
Material:	Steel
Mounting Hole Center to Center:	60 mm
Mounting Hole to Edge:	20 mm
Number of Rail Holes:	5
Rail Size:	15 mm
Screw Size:	M4
Screw Type:	Hex Head
Series:	500
Style:	Standard Bolt Down From The Top
Suitable For Use With:	500 Series Standard Ball Carriages
Temperature Rating:	-40 to 80 deg C
Width:	15 mm
