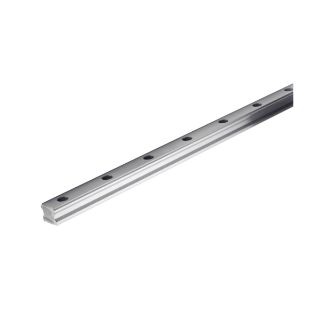

Actual Product May Vary From Image

521H20A+340 THO

Name: 521H20A+340 THO
Brand: Thomson Industries
SKU: 521H20A+340 THO
Availability: OutOfStock

Thomson® 521H20A+340 500 Profile Rail, Standard Bolt Down From The Top Style, 20 mm Rail, 340 mm L x 19 mm H

Manufacturer: Thomson Industries

Manufacturer part number: 521H20A+340

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Thomson®

Description

Thomson® Profile Rail, Series: 500, Standard Bolt Down From The Top Style, 20 mm Rail, 340 mm Length, 20 mm Width, 19 mm Height, Hex Head Screw, M5 Screw, 6 Rail Holes, 60 mm Mounting Hole Center to Center, 20 mm Mounting Hole to Edge, -40 to 80 deg C, Steel, For Use With: 500 Series Standard Ball Carriages

Standards

RoHS Compliant

Features

Straighter rails through advanced grinding technologies
Simple installation and greater accuracy with joint-free rails up to 6 m
High grade accuracy class

Specifications

Country of Origin:	DE
Height:	19 mm
Length:	340 mm
Material:	Steel
Mounting Hole Center to Center:	60 mm
Mounting Hole to Edge:	20 mm
Number of Rail Holes:	6
Rail Size:	20 mm
Screw Size:	M5
Screw Type:	Hex Head
Series:	500
Style:	Standard Bolt Down From The Top
Suitable For Use With:	500 Series Standard Ball Carriages
Temperature Rating:	-40 to 80 deg C
Width:	20 mm
