Name: 521H30A+760 THO
Brand: Thomson Industries
SKU: 521H30A+760 THO
Availability: OutOfStock

521H30A+760 THO

Actual Product May Vary From Image

Product Details

Manufacturer:

Thomson Industries

Manufacturer part number:

521H30A+760

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Thomson®

Description

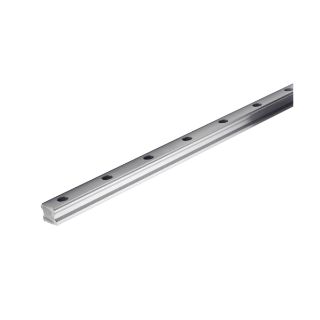

Thomson® Profile Rail, Series: 500, Standard Bolt Down From The Top Style, 30 mm Rail, 760 mm Length, 28 mm Width, 26 mm Height, Hex Head Screw, M8 Screw, 10 Rail Holes, 80 mm Mounting Hole Center to Center, 20 mm Mounting Hole to Edge, -40 to 80 deg C, Steel, For Use With: 500 Series Standard Ball Carriages

Standards

RoHS Compliant

Features

Straighter rails through advanced grinding technologies
Simple installation and greater accuracy with joint-free rails up to 6 m
High grade accuracy class

Specifications

Country of Origin:	DE
Height:	26 mm
Length:	760 mm
Material:	Steel
Mounting Hole Center to Center:	80 mm
Mounting Hole to Edge:	20 mm
Number of Rail Holes:	10
Rail Size:	30 mm
Screw Size:	M8
Screw Type:	Hex Head
Series:	500
Style:	Standard Bolt Down From The Top
Suitable For Use With:	500 Series Standard Ball Carriages
Temperature Rating:	-40 to 80 deg C
Width:	28 mm
