Actual Product May Vary From Image

52400DE-2 TKN

Name: 52400DE-2 TKN
Brand: Timken
SKU: 52400DE-2 TKN
Price: 1,681.81 USD
Availability: OutOfStock

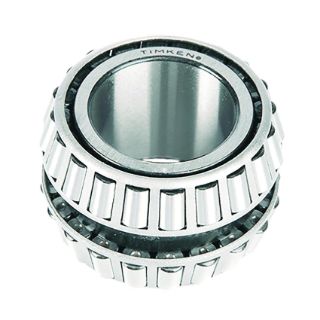

Tapered Roller Bearing Double Cone

Manufacturer: Timken

Manufacturer part number: 52400DE-40287

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1,681.81

Qty:

Product Details

Brand Name

Timken

Description

Timken®is the recognized global leader in tapered roller bearings. It has the most extensive offering in the market. With capacity to manage both radial and axial loads, high-performance Timken® tapered roller bearing assemblies are engineered to provide the greatest durability in the most compact space.

Tapered Roller Bearing Double Cone | Imperial | 101.6 mm 4 in Bore | 158.8 mm 6.3 in Width

Features

Widest choice including both inch and metric sizes
Engineered to deliver higher speeds, heavier loads and longer life
Unrivaled technology and engineering support
Provides a solution for many fixed or floating bearing applications where simplicity of assembly is required

Specifications

Assembly Components:	Double Cone
Bearing Material:	Steel
Bearing Type:	Double Cone
Bore Type:	Straight Bore
Cage (Retainer) Type:	Steel
Cage Material:	Steel
Component (I/R; O/R assembly):	Inner Ring
Dynamic Load Rating:	82600
Inner Race Width (in):	6.25
Inner Race Width (mm):	158.75
Load Rating UOM:	LB
Material - Rolling Elements:	Steel
Overall Width (in):	6.25
Overall Width (mm):	158.75
Precision class:	Class 4 (Standard)
Raceway Style:	Tapered Roller Bearing
Rolling Element:	Tapered Roller
Row Type:	Double
Shaft Size (in):	4
Shaft Size (mm):	101.6
Static Load Rating:	154000
