5248-CP LEV

Name: 5248-CP LEV
Brand: Leviton Manufacturing
SKU: 5248-CP LEV
Availability: OutOfStock

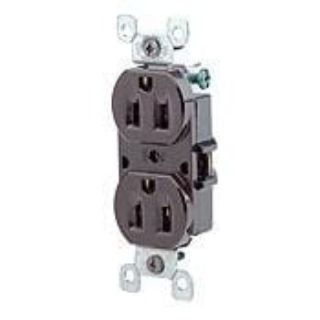

Leviton® 5248-CP Duplex Grounding Straight Blade Receptacle With Ears, 125 VAC, 15 A, 2 Poles, 3 Wires, Brown

Manufacturer: Leviton Manufacturing

Manufacturer part number: 5248-CP

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

Duplex Grounding

Alternate Supplier #

Grainger - 25KT32

Description

Leviton® comprehensive residential grade receptacles portfolio includes devices rated for all residential applications in a variety of standard configurations. They are produced in an array of colors in both Decora® and traditional styles. All duplex receptacles are designed with thermoplastic construction and feature a shallow build for maximum wiring room. Each duplex is also equipped with break-off plaster ears and tabs to allow for easy alignment and two circuit conversion.

Leviton® Straight Blade Receptacle, Duplex Grounding, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial Grade, -40 to 60 deg C, Quick-Wire® Push-In/Side Wire Terminal, Thermoplastic, Brown, 46 in H x 1.55 in W x 0.94 in D Dimensions

Standards

NOM 057 | CSA File No. LR406 | UL 498/1561 | UL94 V-2 Flammability Rating

Specifications

Amperage Rating:	15 A
Color:	Brown
Country of Origin:	US
Dimensions:	46 in H x 1.55 in W x 0.94 in D
Grade:	Commercial
Material:	Thermoplastic
NEMA Rating:	NEMA 5-15R
Number of Poles:	2
Number of Wires:	3
Temperature Rating:	-40 to 60 deg C
Terminal Type:	Quick-Wire® Push-In/Side Wire
Voltage Rating:	125 VAC
