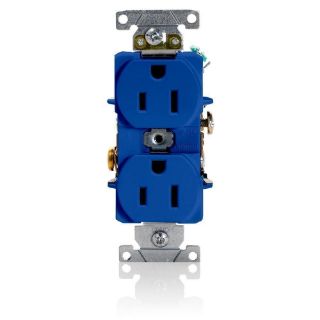

Picture of 5252-BU LEV
Actual Product May Vary From Image

5252-BU LEV

Leviton® 5252-BU Duplex Heavy Duty Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Blue
Manufacturer: Leviton Manufacturing
Manufacturer part number: 5252-BU
Availability: Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$7.73

Product Details

Brand Name

Leviton®

Type

Duplex Heavy Duty

Description

Leviton® line of heavy duty industrial grade receptacles are available with a number of wiring options and features. These heavy duty receptacles are engineered for fine appearance and top performance in demanding commercial and institutional applications using a durable, thermoplastic face and impact-resistant construction.
Leviton® Straight Blade Receptacle, Duplex Heavy Duty, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial/Specification Grade, -40 to 60 deg C, Back/Side Wire Terminal, Nylon, Blue, 46 in H x 1.55 in W x 1.12 in D Dimensions

Application

Commercial Applications

Standards

ANSI (C-73) | CSA C22.2 No. 42 File No. 152105 | NOM Certified | UL Federal Specification WC-596 File No. E13399 | UL 498 File No. E13399 | UL94 Flammability Rating

Features

  • Impact resistant thermoplastic nylon cover and body
  • Smooth face does not collect dirt
  • Four corner latches securely fasten face
  • Large, triple-wipe, brass "T" contacts for superior contact and conductivity
  • Back and side wiring options
  • Brass terminal screws to reduce conductor oxidation
  • Break-off tabs for easy two-circuit conversion
  • Apron barrier to prevent accidental contact between terminal screw heads and metal box
  • Exclusive V-shaped, serrated back-wiring clamps for superior contact and conductivity
  • Wire lead receptacles for fast and easy installation

Specifications

Amperage Rating:15 A
Color:Blue
Country of Origin:MX
Dimensions:4.06 in H x 1.55 in W x 1.12 in D
Enclosure:NEMA WD-1/WD-6
Grade:Commercial/Specification
Horsepower:1/2 hp
Material:Nylon
NEMA Rating:NEMA 5-15R
Number of Poles:2
Number of Wires:3
Temperature Rating:-40 to 60 deg C
Terminal Type:Back/Side Wire
Voltage Rating:125 VAC
