5266-C LEV

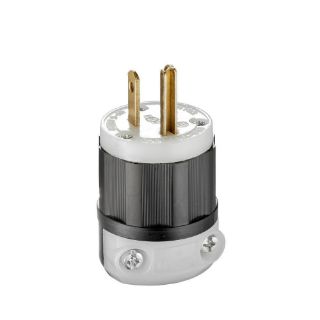

Picture of 5266-C LEV
Actual Product May Vary From Image

Product Details

Manufacturer:
Leviton Manufacturing
Manufacturer part number:
5266-C
Product Name:
5266-C LEV
CBT Inventory
20
Vendor Inventory
Loading...
CBT - Cincinnati
0
CBT - Springboro
20
CBT - Sidney
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
$24.24 / EA

Description

Brand Name

Leviton®

Type

Cable Mount Grounding

Alternate Supplier #

Grainger - 5C369

Description

Leviton® Black & White® line of industrial grade plugs and connectors offer superior performance, long lasting reliability and features that are backed by a lifetime warranty. Available in many NEMA and non-NEMA configurations, youll be sure to find the right device for your needs.
Leviton® 5266-C Straight Blade Plug, Cable Mount Grounding, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15P NEMA Rating, Industrial Grade, 0.25 to 0.685 in Diameter Cord, -40 to 60 deg C, Nylon, Black/White, 1.53 in Dia x 1.98 in H Dimensions

Application

Industrial Applications

Standards

ANSI C73 | NOM 057 | NEMA WD1/WD6 | CSA C22.2 No. 42 File No. LR406 | UL 498 File No. E13399 | Federal Specification WC596 | UL94 V-2 Flammability Rating

Features

  • Rugged nylon construction resists impact, sunlight, chemicals and rough use
  • All contacts are solid 1-piece brass for better conductivity
  • Triple wipe, heavy duty power contacts set in deep pockets to resist damage
  • Captive, color coded brass 8 AWG terminal screws
  • Power indication devices indicate when power is ON and equipped with green neon bulb rated at 30000 hr (24/7) for 3.5 years
  • 18 to 10 AWG terminal accommodation
  • Zinc plated steel assembly screws and solid brass blade and contacts
  • Thermoplastic back cover, nylon wire module, nylon cord clamp, nylon clamp insert and brass terminal screws
  • Super tough nylon body

Specifications

Amperage Rating:15 A
Color:Black/White
Cord Diameter:0.25 to 0.685 in
Country of Origin:MX
Dimensions:1.53 in Dia x 1.98 in H
Grade:Industrial
Material:Nylon
NEMA Rating:NEMA 5-15P
Number of Poles:2
Number of Wires:3
Temperature Rating:-40 to 60 deg C
Voltage Rating:125 VAC
