5266 WOO

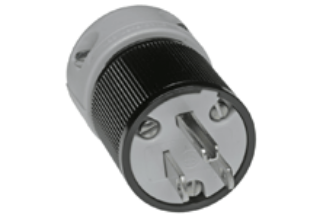

Picture of 5266 WOO
Actual Product May Vary From Image

Product Details

Manufacturer:
Molex (Woodhead)
Manufacturer part number:
5266
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 7 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$21.80 / EA

Description

Brand Name

Woodhead®

Description

Woodhead® Safeway® Straight Blade Plug, Series: AC Series, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15 Rating, Industrial Grade, 0.335 to 0.64 in Diameter Cord, Nylon, Black/White

Standards

RoHS Compliant | UL Listed | CSA Certified

Features

  • NEoTEX® Paracril OZO rubber body yields the best performance for abrasion, chemical exposure and temperature extremes within the Super-Safeway® offering
  • Rugged nylon bodies within the Safeway® offering provide exceptional durability and performance
  • Color coded 1/4 in terminal screws preset in open position, ready to wire
  • Wire screw terminals are tri-drive to be used with straight blade, Phillips® and square drive screw drivers
  • Floating blade construction provides self-alignment and a better mechanical and electrical connection minimizing wear and heat generation
  • Transparent wiring guide to verify all wire strands are in place before securing wire
  • Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
  • 2-piece cord clamp strain relief includes tri-drive screws to firmly secure the cord

Specifications

Amperage Rating:15 A
Color:Black/White
Cord Diameter:0.335 to 0.64 in
Country of Origin:MX
Grade:Industrial
Material:Nylon
NEMA Rating:NEMA 5-15
Number of Poles:2
Number of Wires:3
Series:AC Series
Voltage Rating:125 VAC
