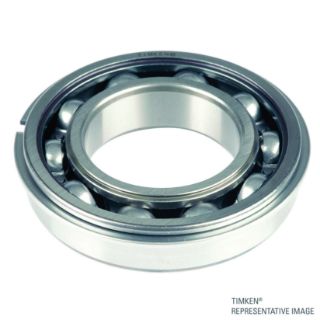

Actual Product May Vary From Image

5305KG TKN

Name: 5305KG TKN
Brand: Timken
SKU: 5305KG TKN
Price: 213.62 USD
Availability: OutOfStock

Ball Angular Contact Double Row

Manufacturer: Timken

Manufacturer part number: 5305KG

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$213.62

Qty:

Product Details

Brand Name

Timken Fafnir

Description

Timken angular contact ball bearings are designed to handle high-speeds with both radial and axial loads with reliable performance in pump, compressor, electric motor and many other industrial applications. Our Products offering includes a range of single-row universally matched, single-row standard, and double-row products with different cage types, contact angles and tolerances.

Ball Angular Contact Double Row | 25 mm 1 in Bore | 62 mm 2.4 in OD

Features

Enhanced raceway finish
Quiet operation
Dimensionally interchangeable

Specifications

Bearing Material:	Steel
Bearing Type:	Ball Bearing
Bore Size (ID) - in:	0.9843
Bore Size (ID) - mm:	25.00122
Bore Type:	Straight
Closure (Seal) type:	Open
Component (I/R; O/R assembly):	Assembly
Contact Angle:	20
Dynamic Load Rating:	7700
Fillet Radius - Inch:	0.02
Fillet Radius - Millimeter:	0.508
Flush Ground:	No
Inner Ring Width - Inch:	1
Inner Ring Width - Millimeter:	25.4
Load Rating UOM:	LB
Manufacturer Product Page Link:	https://www.timken.com/products/timken-engineered-bearings/ball/angular-contact/
Material - Rolling Elements (Ball or Roller):	Ball
Maximum Capacity / Filling Slot:	No
Maximum Operating RPM (Grease):	145976.877262642
Maximum Operating RPM (Oil):	175172.25271517
Number of Bearings:	1
Operating Temperature Max:	120° C
Operating Temperature Min:	-50° C
Outer Diameter - in:	2.4409
Outer Diameter - mm:	61.99886
Outer Diameter Type:	Cylindrical
Outer Ring Width - Inch:	1
Outer Ring Width - Millimeter:	25.4
Overall Width - in:	1
Overall Width - mm:	25.4
Precision class:	ABEC-1
Retainer Material:	Polymer
Rolling Element:	Ball
Row Type:	Double
Series:	5300
Snap Ring:	yes
Static Load Rating:	4750
