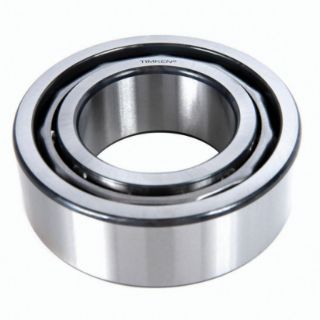

Actual Product May Vary From Image

5306K TKN

Name: 5306K TKN
Brand: Timken
SKU: 5306K TKN
Price: 175.71 USD
Availability: OutOfStock

Fafnir® 5306K C3 5300 Medium Conrad Angular Contact Ball Bearing, 30 mm Dia Bore, 72 mm OD, 2 Rows, 30.17 mm W, 20 deg, 47000 N Dynamic/29000 N Static Load

Manufacturer: Timken

Manufacturer part number: 5306K C3

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$175.71

Qty:

Product Details

Brand Name

Fafnir®

Type

Medium Conrad

Description

Timken® angular contact ball bearings are designed for combination radial and axial loading. Single-row bearings have high thrust capacity in one direction. Some single-row bearings are specifically designed for duplex mounting in sets for maximum performance. Double-row conrad bearings can accommodate thrust in both directions.

Fafnir® Angular Contact Ball Bearing, Medium Conrad, Series: 5300, 30 mm Bore Dia, 72 mm Outside Dia, 2 Rows, 30.17 mm W, 20 deg Contact, Open Closure, 47000 N Dynamic/29000 N Static, Steel Bearing, Steel Cage, 5770 rpm Maximum, Uncoated

Application

Agriculture, Chemical, General Industry and Utilities

Features

Specific geometry of angular contact bearing raceways and shoulders creates ball contact angles that support higher axial loads
Features the same bores and outside diameters as corresponding bearings in the 300 series single-row radial type
Double-row angular contact ball bearings meet the demand for increased axial and radial rigidity in applications where the design limits space
These double-row series bearings are not pre-lubricated

Specifications

Bearing Material:	Steel
Bore Diameter:	30 mm
Cage Material:	Steel
Closure Type:	Open
Contact Angle:	20 deg
Country of Origin:	US
Finish:	Uncoated
Load Capacity:	47000 N Dynamic/29000 N Static
Maximum Speed:	5770 rpm
Number of Rows:	2
Outside Diameter:	72 mm
Series:	5300
Width:	30.17 mm
