5306WD TKN

Name: 5306WD TKN
Brand: Timken
SKU: 5306WD TKN
Price: 291.33 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Timken

Manufacturer part number:

5306WD

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$291.33 / EA

Description

Brand Name

Fafnir®

Type

Medium Duty Straight Bore

Description

Timken® Angular Contact Ball Bearings are designed to handle high speeds with both radial and axial loads with reliable performance in pump, compressor, electric motor and many other industrial applications. Our products offering includes a range of single-row universally matched, single-row standard and double-row products with different cage types, contact angles and tolerances.

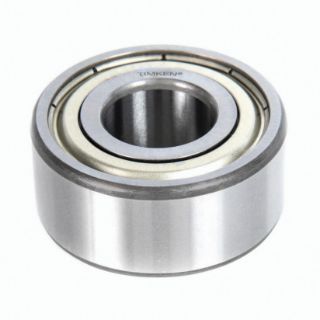

Timken® Fafnir®, 5306WD, Angular Contact Ball Bearing, Medium Duty Straight Bore, Series: 5300, 30 mm Bore, 72 mm OD, 2 Rows, 30.2 mm Width, 30 deg Contact Angle, Single Shield Closure, 12600 lb Dynamic/9300 lb Static Load, Steel Bearing, 124511.29 rpm Grease/149413.55 rpm Oil Maximum, -50 to 120 deg C

Application

Aircraft, Construction, Agricultural, Machine Tool and General Industry Applications

Standards

Precision Class ABEC 1

Features

Enhanced raceway finish
Quiet operation
Dimensionally interchangeable

Specifications

Bearing Material:	Steel
Bore Diameter:	30 mm
Cage Material:	Steel
Closure Type:	Single Shield
Contact Angle:	30 deg
Load Capacity:	12600 lb Dynamic/9300 lb Static
Maximum Speed:	124511.29 rpm Grease/149413.55 rpm Oil
Number of Rows:	2
Outside Diameter:	72 mm
Series:	5300
Temperature Rating:	-50 to 120 deg C
Width:	30.2 mm
