5318W C1 MBR FS381 TKN

Name: 5318W C1 MBR FS381 TKN
Brand: Timken
SKU: 5318W C1 MBR FS381 TKN
Price: 3,719.58 USD
Availability: OutOfStock

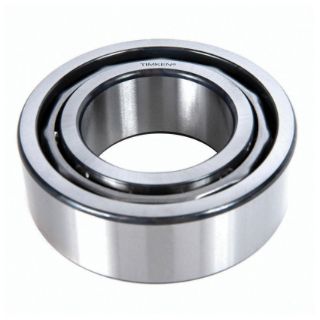

Actual Product May Vary From Image

Product Details

Manufacturer:

Timken

Manufacturer part number:

5318W C1 MBR FS381

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$3,719.58 / EA

Description

Brand Name

Fafnir®

Type

Medium Duty Straight Bore

Description

Timken® Angular Contact Ball Bearings are designed to handle high speeds with both radial and axial loads with reliable performance in pump, compressor, electric motor and many other industrial applications. Our products offering includes a range of single-row universally matched, single-row standard and double-row products with different cage types, contact angles and tolerances.

Timken® Fafnir®, 5318W C1 MBR FS381, Angular Contact Ball Bearing, Medium Duty Straight Bore, Series: 5300, 90 mm Bore, 190 mm OD, 2 Rows, 73 mm Width, 30 deg Contact Angle, Open Closure, 69100 lb Dynamic/66300 lb Static Load, Steel Bearing, Machined Bronze Cage, 45357.23 rpm Grease/54428.68 rpm Oil Maximum, -50 to 120 deg C

Application

Aircraft, Construction, Agricultural, Machine Tool and General Industry Applications

Standards

Precision Class ABEC 1

Features

Enhanced raceway finish
Quiet operation
Dimensionally interchangeable

Specifications

Bearing Material:	Steel
Bore Diameter:	90 mm
Cage Material:	Machined Bronze
Closure Type:	Open
Contact Angle:	30 deg
Load Capacity:	69100 lb Dynamic/66300 lb Static
Maximum Speed:	45357.23 rpm Grease/54428.68 rpm Oil
Number of Rows:	2
Outside Diameter:	190 mm
Series:	5300
Temperature Rating:	-50 to 120 deg C
Width:	73 mm
