Actual Product May Vary From Image

532XA 2 TKN

Name: 532XA 2 TKN
Brand: Timken
SKU: 532XA 2 TKN
Availability: OutOfStock

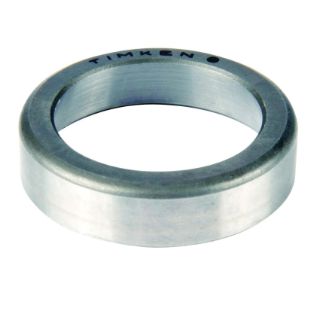

Timken® 532XA-20024 535 Non-Flanged Bearing Cup, 7 in OD, 1-3/16 in W Cup, 1-7/16 in W Bearing, 0.13 in Max House Fillet Radius, 3.96 in Frontface/3.74 in Backface Dia Max House Shoulder

Manufacturer: Timken

Manufacturer part number: 532XA-20024

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Timken®

Type

Non-Flanged

Description

Timken® is the recognized global leader in tapered roller bearings. It has the most extensive offering in the market. With the ability to support high radial and axial loads, high-performance Timken® double row tapered roller bearing components are engineered to provide the greatest durability in the most compact space.

Timken® Bearing Cup, Non-Flanged, Series: 535, 7 in OD, 1-3/16 in Cup Width, 1-7/16 in Bearing Width, 0.13 in Maximum House Fillet Radius, 3.96 in Frontface/3.74 in Backface Diameter Maximum House Shoulder, For Use With: Type TS Single Row Tapered Roller Bearing, Steel

Application

Vehicle Front Wheels, Differential and Pinion Configurations, Conveyor Rolls, Machine Tool Spindles, Trailer Wheels and General Purpose Applications

Standards

ABMA Standard

Features

Both rings should be replaced together to maximize reliability and life
Class 2 standard precision level

Specifications

Bearing Width:	1-7/16 in
Cup Width:	1-3/16 in
Material:	Steel
Maximum House Fillet Radius:	0.13 in
Maximum House Shoulder Diameter:	3.96 in Frontface/3.74 in Backface
Outside Diameter:	7 in
Series:	535
Suitable For Use With:	Type TS Single Row Tapered Roller Bearing
