Actual Product May Vary From Image

5342-BU LEV

Name: 5342-BU LEV
Brand: Leviton Manufacturing
SKU: 5342-BU LEV
Availability: OutOfStock

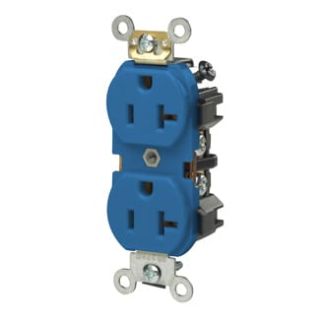

Leviton® 5342-BU 1-Phase Self-Grounding Straight Blade Duplex Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Blue

Manufacturer: Leviton Manufacturing

Manufacturer part number: 5342-BU

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

1-Phase Self-Grounding

Description

Leviton® line of extra heavy-duty industrial grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, hospital grade, etc., these Industrial grade devices are the electrical contractor choice for use in factories, schools, hospitals and commercial office buildings.

Leviton® Straight Blade Duplex Receptacle, 1-Phase Self-Grounding, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial Grade, -40 to 60 deg C, Side Wire Terminal, Polypropylene, Blue, 46 in H x 1.55 in W x 1.12 in D Dimensions

Application

Commercial Applications

Standards

Features

Wallbox mount
2000 V (min) dielectric strength
UL 94V-2 flammability rated
Premium spec grade
Galvanized steel strap material
14 to 10 AWG wire terminal

Specifications

Amperage Rating:	20 A
Color:	Blue
Country of Origin:	US
Dimensions:	46 in H x 1.55 in W x 1.12 in D
Grade:	Commercial
Horsepower:	1 hp
Material:	Polypropylene
NEMA Rating:	NEMA 5-20R
Number of Poles:	2
Number of Wires:	3
Temperature Rating:	-40 to 60 deg C
Terminal Type:	Side Wire
Voltage Rating:	125 VAC
