5362 LEV

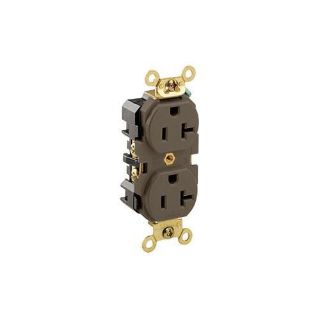

Picture of 5362 LEV
Actual Product May Vary From Image

Product Details

Manufacturer:
Leviton Manufacturing
Manufacturer part number:
5362
CBT Inventory
0
Vendor Inventory
Loading...
CBT - Cincinnati
0
CBT - Springboro
0
CBT - Sidney
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$18.80 / EA

Description

Brand Name

Leviton®

Type

1-Phase Duplex Extra Heavy Duty

Description

Leviton® line of extra heavy duty industrial grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper resistant, hospital grade and more, these industrial grade devices are the electrical contractors choice for use in factories, schools, hospitals and commercial office buildings.
Leviton®, 5362, Straight Blade Receptacle, 1-Phase Duplex Extra Heavy Duty, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial Grade, -40 to 60 deg C, Back/Side Wire Terminal, Thermoplastic, Brown, 46 in H x 1.53 in W x 1.11 in D Dimensions

Standards

NEMA WD1/WD6 | ANSI C73 | NOM 057 | CSA C22.2 No. 42 File No. 152105 | UL Federal Specification W-C-596 File No. E13399 | UL 498 File No. E13399 | UL94 V-2 Flammability Rating

Features

  • Impact resistant thermoplastic nylon cover and body
  • Four corner latches securely fasten face
  • Large triple wipe, brass T contacts for superior contact and conductivity
  • Back and side wiring options
  • Brass terminal screws to reduce conductor oxidation
  • Break-OFF tabs allow easy 2-circuit conversion
  • Apron barrier to prevent accidental contact between terminal screw heads and metal box
  • Exclusive V-shaped, serrated back wiring clamps for superior contact and conductivity
  • Wire lead receptacles for fast and easy installation
  • Wallbox mounting
  • Self-grounding
  • 1-phase
  • 2000 VAC minimum dielectric strength
  • Brass strap material
  • 14 to 10 AWG wire terminal

Specifications

Amperage Rating:20 A
Color:Brown
Country of Origin:MX
Dimensions:46 in H x 1.53 in W x 1.11 in D
Grade:Commercial
Horsepower:1 hp
Material:Thermoplastic
NEMA Rating:NEMA 5-20R
Number of Poles:2
Number of Wires:3
Temperature Rating:-40 to 60 deg C
Terminal Type:Back/Side Wire
Voltage Rating:125 VAC

Customers who bought this item also bought

Picture of TP434 CRH

TP434 CRH

MFG#:
Info:4 SQ BOX 2 1/82D DRAWN 1/2 3/4 KO FOR C
$ -.--
Picture of TP516 CRH

TP516 CRH

MFG#:
Info:4 SQ BOX 1 DUPLEX REC SURF CVR
$ -.--

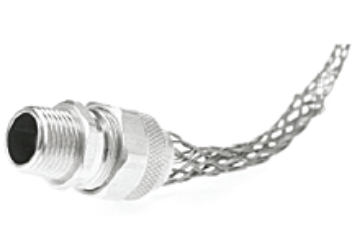

Picture of 36272 WOO
