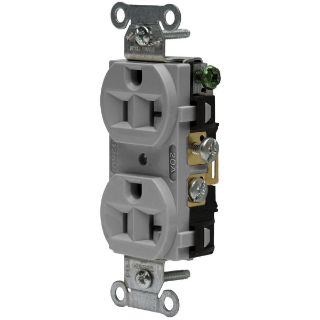

Picture of 5362AG HWD
Actual Product May Vary From Image

5362AG HWD

Wiring Device-Kellems Hubbell-Pro™ 5362AG 1-Phase Duplex Heavy Duty Self-Grounding Standard Straight Blade Receptacle, 125 V, 20 A, 2 Poles, 3 Wires, Gray
Manufacturer: Hubbell Wiring Device-Kellems
Manufacturer part number: 5362AG
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$2.92

Product Details

Brand Name

Wiring Device-Kellems

Type

1-Phase Duplex Heavy Duty Self-Grounding Standard

Description

Wiring Device-Kellems Hubbell-Pro™ Straight Blade Receptacle, 1-Phase Duplex Heavy Duty Self-Grounding Standard, 125 V, 20 A, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial/Industrial/Specification Grade, -40 to 75 deg C, Back/Side Wire Terminal, Composite/Thermoplastic, Gray, 1.569 in W x 1.067 in D Dimensions

Standards

CSA C22.2 File No. 42/285 | CSA Certified | Federal Specification W-C-596 | NEMA WD-6 Compliant | UL 94 V-2 Flammability Rating | UL File No. E2186 | UL Listed

Features

  • Easy access split circuit tab
  • Finder groove face
  • Triple wipe contacts
  • Wrap around galvanized steel strap

Specifications

Amperage Rating:20 A
Color:Gray
Country of Origin:CN
Dimensions:1.569 in W x 1.067 in D
Grade:Commercial/Industrial/Specification
Material:Composite/Thermoplastic
NEMA Rating:NEMA 5-20R
Number of Poles:2
Number of Wires:3
Temperature Rating:-40 to 75 deg C
Terminal Type:Back/Side Wire
Voltage Rating:125 V
