5362I HWD

Name: 5362I HWD
Brand: Hubbell Wiring Device-Kellems
SKU: 5362I HWD
Price: 5.54 USD
Availability: InStock

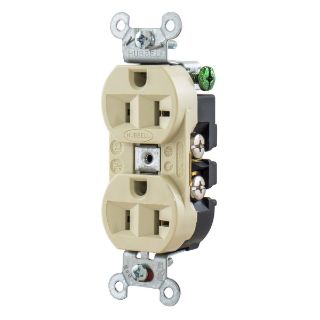

Actual Product May Vary From Image

Product Details

Manufacturer:

Hubbell Wiring Device-Kellems

Manufacturer part number:

5362I

CBT Inventory

Vendor Inventory

Availability:

5 in stock

Estimated dates are contingent upon manufacturer stock.

$5.54 / EA

Description

Brand Name

Wiring Device-Kellems

Type

1-Phase Duplex Grounding Heavy Duty Standard

Alternate Supplier #

Grainger - 2WMR8

Description

Wiring Device-Kellems Hubbell-Pro™ Straight Blade Receptacle, 1-Phase Duplex Grounding Heavy Duty Standard, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial/Industrial Grade, -40 to 75 deg C, Back/Side Wire Terminal, Composite/Thermoplastic, Ivory, 3.28 in H x 1.41 in W Dimensions

Standards

Features

RTP base, brass 0.31 in triple wipe contacts, 0.31 in ground contact, 32 to 8 AWG line terminal and ground screw, galvanized steel 0.04 in mounting strap and center assembly staple, stainless steel automatic self-grounding staple, zinc plated steel mounting screw
Withstands 2000 VAC minimum dielectric voltage
Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% rated current for either AC or DC applications per UL 498 temperature rise
Certified for current interrupting at full rated current
Ratings are a permanent part of the device product identification
14 to 12 AWG wire size

Specifications

Amperage Rating:	20 A
Color:	Ivory
Country of Origin:	US
Dimensions:	3.28 in H x 1.41 in W
Grade:	Commercial/Industrial
Horsepower:	1 hp
Material:	Composite/Thermoplastic
NEMA Rating:	5-20R
Number of Poles:	2
Number of Wires:	3
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Back/Side Wire
Voltage Rating:	125 VAC
