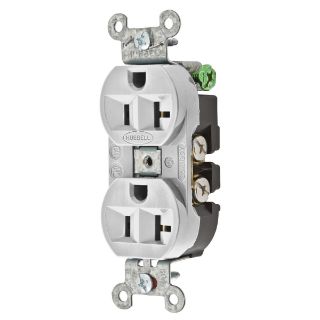

Picture of 5362OW HWD
Actual Product May Vary From Image

5362OW HWD

Wiring Device-Kellems Hubbell-PRO 5362OW 1-Phase Duplex Grounding Heavy Duty Standard Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Off-White
Manufacturer: Hubbell Wiring Device-Kellems
Manufacturer part number: 5362OW
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Wiring Device-Kellems

Type

1-Phase Duplex Grounding Heavy Duty Standard

Description

Wiring Device-Kellems Hubbell-PRO Straight Blade Receptacle, 1-Phase Duplex Grounding Heavy Duty Standard, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial/Industrial Grade, -40 to 75 deg C, Back/Side Wire Terminal, Composite/Thermoplastic, Off-White, 3.281 in H x 1.406 in W x 1.094 in D Dimensions

Application

Indoor Dry Environment, Commercial and Industrial Applications

Standards

CSA C22.2 No. 42 | UL 498 File No. E2186 | Federal Specification W-C-596 | UL94 V-2 Flammability Rating | NEC Certified | NEMA WD1/WD5/WD6

Features

  • Slender compact design
  • Triple wipe contacts
  • Finder groove face

Specifications

Amperage Rating:20 A
Color:Off-White
Country of Origin:US
Dimensions:3.28 in L x 1.41 in W x 1.09 in H
Grade:Commercial/Industrial
Horsepower:1 hp
Material:Composite/Thermoplastic
NEMA Rating:NEMA 5-20R
Number of Poles:2
Number of Wires:3
Temperature Rating:-40 to 75 deg C
Terminal Type:Back/Side Wire
Voltage Rating:125 VAC
