Actual Product May Vary From Image

5372-IG LEV

Name: 5372-IG LEV
Brand: Leviton Manufacturing
SKU: 5372-IG LEV
Availability: OutOfStock

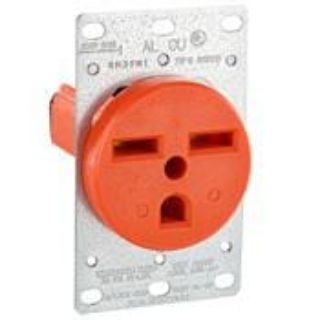

Leviton® 5372-IG Extra Heavy Duty Isolated Grounding Straight Blade Power Receptacle, 250 VAC, 30 A, 2 Poles, 3 Wires, Orange

Manufacturer: Leviton Manufacturing

Manufacturer part number: 5372-IG

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

Extra Heavy Duty Isolated Grounding

Alternate Supplier #

Grainger - 25KV29

Description

Leviton® line of extra heavy duty industrial grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper resistant, hospital grade and more, these industrial grade devices are the electrical contractor's choice for use in factories, schools, hospitals and commercial office buildings.

Leviton® Straight Blade Power Receptacle, Extra Heavy Duty Isolated Grounding, 250 VAC, 30 A, 2 hp, 2 Pole, 3 Wires, NEMA 6-30R NEMA Rating, Commercial Grade, -40 to 60 deg C, Side Wire Terminal, Thermoplastic, Orange, 3.75 in H x 2.5 in W x 2.1 in D Dimensions

Standards

Features

Heavy gauge, double wipe copper alloy contacts
Easy-to-wire terminals accept up to no 4 AWG conductors
Terminals marked for easy identification and fast wiring
All mounting hardware included
Flush mount devices fit single or 2-gang outlet boxes
Surface mount devices are commercial grade and have concentric knockouts for 3/4 and 1 in conduit and adjustable cord clamp for back and bottom entrance of cable

Specifications

Amperage Rating:	30 A
Color:	Orange
Dimensions:	3.75 in H x 2.5 in W x 2.1 in D
Grade:	Commercial
Horsepower:	2 hp
Material:	Thermoplastic
NEMA Rating:	NEMA 6-30R
Number of Poles:	2
Number of Wires:	3
Temperature Rating:	-40 to 60 deg C
Terminal Type:	Side Wire
Voltage Rating:	250 VAC
