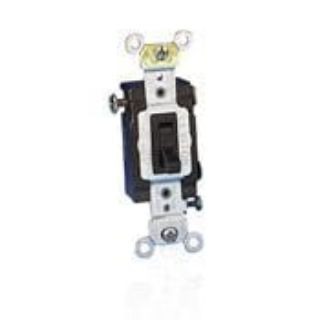

Picture of 54524-2GY LEV
Actual Product May Vary From Image

54524-2GY LEV

Leviton® 54524-2GY 4-Way Framed AC Quiet Toggle Switch, 120/277 VAC, 20 A
Manufacturer: Leviton Manufacturing
Manufacturer part number: 54524-2GY
Availability: Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Leviton®

Type

4-Way Framed

Description

Leviton commercial specification grade switches are designed to offer outstanding reliability and top performance in commercial settings. Ideal applications include municipal facilities, government buildings, malls, department stores, hospital and health care facilities, office buildings, schools, colleges, universities, houses of worship and cultural institutions. Leviton offers a large selection of 15 and 20 A commercial switches in a wide variety of colors, wiring options and other features.
Leviton® AC Quiet Toggle Switch, 4-Way Framed, 120/277 VAC, 20 A, 1 hp at 120 VAC, 2 hp at 240 VAC Contact, Toggle Actuator, NEMA WD-1/WD-6 Enclosure, Surface/Box Mounting, Side Wire Terminal, 50000 Cycles Operating Cycles, Thermoplastic, Gray, Environmental Conditions: -40 to 65 deg C Operating Temperature, 46 in H x 1.31 in W x 1.52 in D

Application

Commercial Applications

Standards

ANSI C-73 | CSA C22.2 No. 111 | CSA File No. 152105 | NOM Certified | UL File No. E7458 | UL Federal Specification W-S-896-E | UL 20 | UL 94 V-2 Flammability Rated | NEMA WD-1/WD-6

Features

  • Large head triple-drive combination screws (standard, Phillip's and Robertson) for fast wiring installation
  • Heavy gauge, rust-resistant steel mounting strap
  • Accepts no 14 to 12 AWG copper or copper clad wire
  • Convenient break-off plaster ears for best alignment
  • Large switch contacts for maximum conductivity

Specifications

Actuator:Toggle
Amperage Rating:20 A
Color:Gray
Contact Rating:1 hp at 120 VAC, 2 hp at 240 VAC
Country of Origin:MX
Dimensions:4.06 in H x 1.31 in W x 1.52 in D
Enclosure:NEMA WD-1/WD-6
Environmental Conditions:-40 to 65 deg C Operating Temperature
Material:Thermoplastic
Mounting:Surface
Operating Cycles:50000 Cycles
Terminal Type:Side Wire
Voltage Rating:120/277 VAC
