5480-R LEV

Name: 5480-R LEV
Brand: Leviton Manufacturing
SKU: 5480-R LEV
Availability: OutOfStock

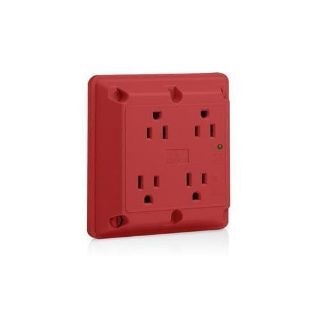

Decora® Plus 5480-R Grounding Heavy Duty Surge Protective Quadruplex Type 3 Straight Blade Four-In-One Receptacle With Indicator Light, 125 VAC, 15 A, 2 Poles, 3 Wires, Red

Manufacturer: Leviton Manufacturing

Manufacturer part number: 5480-R

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

4-in-1 Grounding Heavy Duty Quadruplex Surge Protective

Description

Leviton® surge protection devices can be used individually or as part of a coordinated application strategy, to protect sensitive electronic equipment, in industrial, commercial and residential locations, from the stress and degradation inflicted by voltage transients. Leviton surge protection devices are compliant with UL 1449 Standards. Leviton® outstanding surge protection devices divert damaging voltage transients, or surges, away from electronic equipment. Transients are diverted away from sensitive micro circuitry, providing protection against catastrophic failure, costly downtime and data disruptions.

Decora® Plus Straight Blade Four-In-One Receptacle, Grounding Heavy Duty Surge Protective Quadruplex Type 3, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Industrial/Specification Grade, NEMA WD-1/WD-6 Enclosure, -40 to 60 deg C, Back/Side Wire Terminal, Polycarbonate, Red, 4.5 in W x 1.15 in D Dimensions

Application

For use to protect sensitive electronic equipment in industrial, commercial and residential locations

Standards

Features

Tamper resistant versions have a shutter mechanism that prevents incidental contact with energized contacts
Indicator light provides visual indication that equipment is being protected
Single, duplex and 4-in-1 versions
EMI/RFI noise filtering
Wide variety of color options aid in identifying different types of equipment or applications
Back and side wired design with durable metal mounting strap
Point of use protection for up to 18000 A of surge current total

Specifications

Amperage Rating:	15 A
Color:	Red
Country of Origin:	MX
Dimensions:	4.5 in W x 1.15 in D
Enclosure:	NEMA WD-1/WD-6
Grade:	Commercial
Material:	Polycarbonate
NEMA Rating:	NEMA 5-15R
Number of Poles:	2
Number of Wires:	3
Temperature Rating:	-40 to 60 deg C
Terminal Type:	Back/Side Wire
Voltage Rating:	125 VAC
