55GDMSJD100E BSF

Name: 55GDMSJD100E BSF
Brand: Bussmann
SKU: 55GDMSJD100E BSF
Availability: OutOfStock

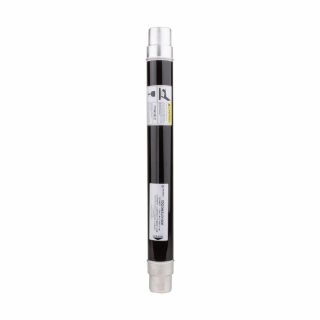

Bussmann 55GDMSJD100E E-Rated Medium Voltage Fuse, 100 A, 5.5 kV, 65 kA Interrupt

Manufacturer: Bussmann

Manufacturer part number: 55GDMSJD100E

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

E-Rated

Description

Bussmann series DIN dimensioned E-rated medium voltage power fuses with striker for indoor use. Striker provides visual indication of fuse operation or a means to activate a remote monitoring system.

Bussmann Medium Voltage Fuse, E-Rated, 100 A, 5.5 kV, 65 kA Interrupt, Cartridge Terminal, DIN Mount, 2 in Dia x 17.4 in L Body Size

Application

For primary protection of medium voltage transformers and switch gear and medium voltage feeder circuits, utility - substations, utility transmission and distribution

Standards

ANSI C37.46

Features

Cool running for lower watts loss
100% X-ray inspected to help assure fuse integrity
Striker provides visual indication of fuse operation or a means to activate a remote monitoring system

Specifications

Amperage Rating:	100 A
Body Size:	2 in Dia x 17.4 in L
Interrupt Rating:	65 kA
Mounting Type:	DIN
Terminal Type:	Cartridge
Voltage Rating:	5.5 kV
