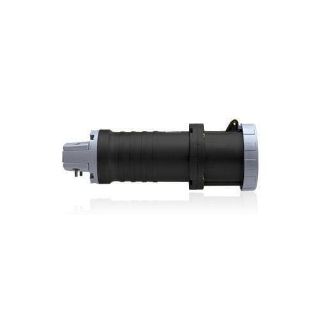

Actual Product May Vary From Image

560C5W LEV

Name: 560C5W LEV
Brand: Leviton Manufacturing
SKU: 560C5W LEV
Availability: OutOfStock

Leviton® 560C5W Pin and Sleeve Connector, 347/600 VAC, 60 A, 4 Poles, 5 Wires, Black

Manufacturer: Leviton Manufacturing

Manufacturer part number: 560C5W

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

North American Configuration Watertight

Description

Leviton® Pin and Sleeve Connector, 347/600 VAC, 60 A, 4 Pole, 5 Wires, Grade: Industrial, IP67 Enclosure, Screw Terminal, Valox®357, Black, 4.41 in Dia x 11.26 in L

Application

Industrial Applications

Standards

CE 73/23/93/68/EEC | CSA C22.2 No. 182.1 | IEC 60309-1/60309-2 | UL 1682/1686 | UL 94 V-2 Flammability Rated

Features

Rugged housing, made of superior performance PBT, provides maximum corrosion protection and makes the device more resistant to impact, abuse and temperature extremes and V-0 flame rated and superior UV stability
Watertight chloroprene onion skin grommet provides a precise, reliable seal at the cable entry point
Rear terminals, raised lettering identification
Calibrated, self-adjusting contacts
Front terminals, raised lettering identification

Specifications

Amperage Rating:	60 A
Color:	Black
Country of Origin:	CZ
Dimensions:	4.41 in Dia x 11.26 in L
Enclosure:	IP67
Frequency Rating:	50/60 Hz
Grade:	Industrial
Material:	Valox® 357
Number of Poles:	4
Number of Wires:	5
Series:	Series II
Temperature Rating:	-40 to 60 deg C
Terminal Type:	Screw
Voltage Rating:	347/600 VAC
