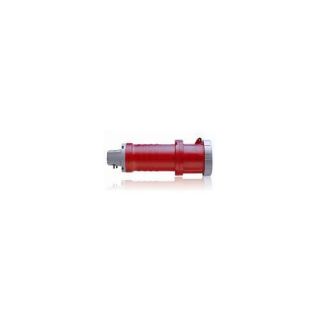

Actual Product May Vary From Image

560C7W LEV

Name: 560C7W LEV
Brand: Leviton Manufacturing
SKU: 560C7W LEV
Availability: OutOfStock

Leviton® 560C7W Series II North American Configuration Watertight Pin and Sleeve Connector, 277/480 VAC, 60 A, 4 Poles, 5 Wires, Red

Manufacturer: Leviton Manufacturing

Manufacturer part number: 560C7W

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

North American Configuration Watertight

Alternate Supplier #

Grainger - 25KW62

Description

Leviton® pin and sleeve devices are easy to use. Matching amperage and voltage requirements is literally as easy as matching colors and telling time. The amperage rating is related to the size of the device, devices of the same amperage are the same size. The voltage rating is related to the location of the ground sleeve ON the female device and the number of conductors. This location is based on a clock face with the key way at the 6 o'clock position. The ground sleeve is positioned at a specific hour location, depending ON the device's voltage rating.

Leviton® Pin and Sleeve Connector, North American Configuration Watertight, Series: Series II, 277/480 VAC, 60 A, 50/60 Hz Frequency, 4 Pole, 5 Wires, Industrial Grade, IP67 Enclosure, -40 to 60 deg C, Screw Terminal, Valox® 357, Red, 4.41 in Dia x 11.26 in L Dimensions

Application

Industrial Applications

Standards

CE 73/23/93/68/EEC | CSA C22.2 No. 182.1 | IEC 60309-1/60309-2 | UL 1682/1686 | UL 94 V-2 Flammability Rated

Features

Rugged housing, made of superior performance PBT, provides maximum corrosion protection and makes the device more resistant to impact, abuse and temperature extremes and V-0 flame rated and superior UV stability
Watertight chloroprene onion skin grommet provides a precise, reliable seal at the cable entry point
Rear terminals, raised lettering identification
Calibrated, self-adjusting contacts
Front terminals, raised lettering identification

Specifications

Amperage Rating:	60 A
Color:	Red
Country of Origin:	CZ
Dimensions:	4.41 in Dia x 11.26 in L
Enclosure:	IP67
Frequency Rating:	50/60 Hz
Grade:	Industrial
Material:	Valox® 357
Number of Poles:	4
Number of Wires:	5
Series:	Series II
Temperature Rating:	-40 to 60 deg C
Terminal Type:	Screw
Voltage Rating:	277/480 VAC
