Actual Product May Vary From Image

5614-2T LEV

Name: 5614-2T LEV
Brand: Leviton Manufacturing
SKU: 5614-2T LEV
Availability: OutOfStock

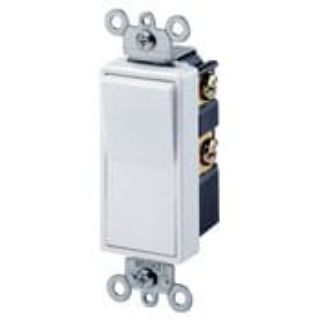

Decora® 5614-2T 4-Way Grounding Lighted Handle AC Quiet Switch With Grounding Screw, 120/277 VAC, 15 A, 1/2 hp at 120 VAC, 2 hp at 277 VAC Power Rating

Manufacturer: Leviton Manufacturing

Manufacturer part number: 5614-2T

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

4-Way Grounding Lighted Handle

Description

Featuring a look and feel that qualify them as modern classics, Decora® designer rocker switches add so much at a modest cost that no home should be without them. Their sleek simplicity and smooth, quiet operation stem from quality materials fitted to tight tolerances and finished with great care, ensuring years of trouble free service. Easy to wire, they work with tungsten, fluorescent and resistive loads. Legendary Decora® designer rocker switches come in a variety of colors to harmonize with any decor. Their sturdy construction and dependable performance are everything you'd expect from the pre-eminent switch maker.

Decora® AC Quiet Switch, 4-Way Grounding Lighted Handle, 120/277 VAC, 15 A, 1/2 hp at 120 VAC, 2 hp at 277 VAC Power, 15 A at 120/277 VAC Contact, Quiet Action, Rocker Actuator, Wall Plate Mounting, Quick-Wire®/Side Wire Terminal, Thermoplastic, Light Almond, Environmental Conditions: -40 to 120 deg C Operating Temperature, UL 94 V-2 Flammability Rating, 4.2 in H x 1.4 in W x 0.99 in D Dimensions

Application

Residential Applications

Standards

UL File No. E-7458 | CSA File No. LR-3413 | NOM 057

Features

Illuminated switch rocker illuminates when load is OFF
Switch border shields against dust and fits in wallplate to prevent rocker binding
Side wiring terminals accept both solid and stranded wire for easy installation
Full rated current capacity with tungsten, fluorescent or resistive loads
Motor capacity is 80% of switch rating
Conforms to NEMA and ANSI standards
Pilot light switch rocker visible when load is ON, even in bright light
Illuminated switch does not require a neutral
Pilot light switch requires a neutral
1/2 hp at 120 VAC, 2 hp at 277 VAC power rating

Specifications

Action:	Quiet
Actuator:	Rocker
Amperage Rating:	15 A
Color:	Light Almond
Contact Rating:	15 A at 120/277 VAC
Country of Origin:	MX
Dimensions:	4.2 in H x 1.4 in W x 0.99 in D
Environmental Conditions:	-40 to 120 deg C Operating Temperature
Material:	Thermoplastic
Mounting:	Surface
Power Rating:	1/2 hp at 120 VAC, 2 hp at 277 VAC
Terminal Type:	Quick-Wire®/Side Wire
Voltage Rating:	120/277 VAC
