Actual Product May Vary From Image

56425-902C7 TKN

Name: 56425-902C7 TKN
Brand: Timken
SKU: 56425-902C7 TKN
Availability: OutOfStock

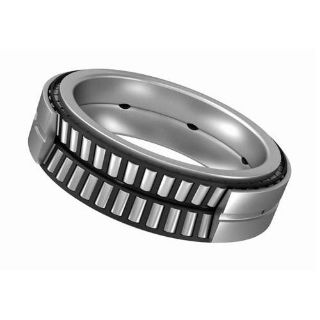

Tapered Roller Bearing Multi-Row Assembly

Manufacturer: Timken

Manufacturer part number: 56425-902C7

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Timken

Description

Timken®is the recognized global leader in tapered roller bearings. It has the most extensive offering in the market. With capacity to manage both radial and axial loads, high-performance Timken® tapered roller bearing assemblies are engineered to provide the greatest durability in the most compact space.

TRB Multi-Row Assembly | Imperial | 108 mm 4.3 in Bore | 165.1 mm 6.5 in OD | 36.5 mm 1.4 in Width

Features

Widest choice including both inch and metric sizes
Engineered to deliver higher speeds, heavier loads and longer life
Unrivaled technology and engineering support
Provides a solution for many fixed or floating bearing applications where simplicity of assembly is required

Specifications

Assembly Components:	Assembly
Bearing Material:	Steel
Bearing Type:	Unmounted Tapered Roller Bearing
Bore Type:	Straight Bore
Component (I/R; O/R assembly):	Assembly
Load Rating UOM:	LB
Material - Rolling Elements:	Steel
Outer Diameter (in):	6.5
Outer Diameter (mm):	165.1
Overall Width (in):	1.4375
Overall Width (mm):	36.5125
Raceway Style:	Tapered Roller Bearing
Rolling Element:	Tapered Roller
Row Type:	Multi-row
Shaft Size (in):	4.25
Shaft Size (mm):	107.95
