Actual Product May Vary From Image

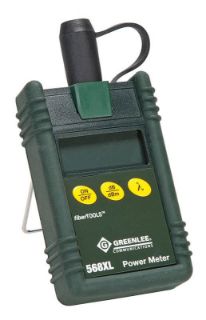

568XL TPO

Name: 568XL TPO
Brand: Greenlee
SKU: 568XL TPO
Availability: OutOfStock

OPM, SOC-HP INGAAS

Manufacturer: Greenlee

Manufacturer part number: 568XL

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Greenlee

Type

XL Series, High Intensity Optic

Description

Easy to use - three buttons control all functions. Multi-wavelength storage: Store and recall reference power levels for faster, more efficient measurements. Loss measurements in (dB). Power measurements in (dBm). Snap on connector interface adapts to FC, SC and ST connectors. Long battery life. User selectable auto shut-off. Rugged and splash-proof. Economically priced.

Standards

CE - EN61010
EN50081-1: 1992
EN55011, Group 1, Class A EN50082-1: 1992 IEC 801-2, -3, -4

Specifications

Accuracy:	+/- 0.25 dB At Calibration Conditions
Calibration Wavelengths:	980, 1310 And 1550 nm
Connector interface:	SOC
Country of Origin:	US
Detector Type:	2 MM Indium-Arsenide (InGaAs)
Dimensions:	2.8 (7.2 CM) Length X 1.4 (3.5 CM) Width X 5.6 (14.2 CM) Height
Humidity:	0 To 95% Non-Condensing
Linearity:	25 To 22 dBm (+/- 1 dB), 22 To 18 dBm (+/- 0.5 dB), 18 To 10 dBm (+/- 0.2 dB), 10 To -30 dBm (+/- 0.05 dB) At 1310 And 1550 nm
Operating Temperature:	-15 To 55°C
Polarization Dependence:	Less Than 0.1 dB
Power Range:	25 To -27 dBm For 980 nm, 25 TO -30 dBm FOR 1310 AND 1550 nm
Sub Brand:	fiberTOOLS

Resources

Brochure Installation Spec Sheet Warranty
