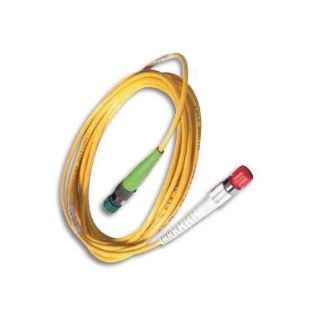

Actual Product May Vary From Image

56E2-105 GRL

Name: 56E2-105 GRL
Brand: Greenlee
SKU: 56E2-105 GRL
Availability: OutOfStock

Greenlee® 56E2-105 Type A to Type B Standard Reference Cable, E2000-PC to E2000-PC Connector, Multi-Mode Fiber

Manufacturer: Greenlee

Manufacturer part number: 56E2-105

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Greenlee®

Type A to Type B Standard

Greenlee® Reference Cable, Type A to Type B Standard, E2000-PC to E2000-PC Connector, Multi-Mode Fiber, 50/125 um Cable, 3 m L Dimensions

Ensures accurate measurements for repeatable and reproducible testing to the latest industry standards meets and/or exceeds the latest industry standards
Corresponding IEC measurement standards
Beam exit angle is greater than or equal to 0.25 deg (SM) and greater than or equal to 0.5 deg (mm)
Fiber to ferrule eccentricity is greater than or equal to 0.25 UM (SM) and greater than or equal to 3 UM (mm)
Insertion loss is greater than or equal to 0.15 dB (SM, 1310/1550 NMTR) and greater than or equal to 0.25 dB (mm, 850/1300 NMTR)
2.499 +/- 0.0005 mm ferrule outside diameter
Return loss is less than or equal to 55 dB (SM, 1310/1550 NMTR) and less than or equal to 40 dB (mm, 850/1300 NMTR)
