Actual Product May Vary From Image

5700980 THO

Name: 5700980 THO
Brand: Thomson Industries
SKU: 5700980 THO
Availability: OutOfStock

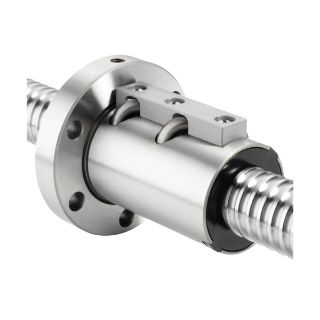

Thomson® 5700980 Precision Plus Ball Screw and Nut Assembly, 2 in Dia Screw, 0.2 in, Right Hand Thread, 96 in L Screw

Manufacturer: Thomson Industries

Manufacturer part number: 5700980

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Thomson®

Description

Thomson® Precision Plus Ground Ball Screw Assemblies provide the positioning accuracy and repeatability required for the most stringent positioning applications. They are designed and manufactured to provide 8 times the lead accuracy of conventional ball screws, and provide consistent, zero-backlash, preload for high repeatability. All ball nuts feature an integral flange for optimal precision and mounting ease, and specially designed seals/wipers that provide superior lubricant retention while keeping out harmful contaminants.

Thomson® Ball Screw and Nut Assembly, Series: Precision Plus, Right Hand Thread, 0.2 in Thread Lead, 2 in Screw Diameter, 96 in Screw Length, 5-3/4 in Nut Length, 6181 lb Dynamic/65903 lb Static Screw Load, Steel

Features

Screw must be machined to fit end supports
Wiper may or may not be included depending on model
Screw must be machined to fit into end support bearings screws can be ordered with ends machined, assembled with support bearings

Specifications

Country of Origin:	US
Material:	Steel
Nut Length:	5-3/4 in
Screw Diameter:	2 in
Screw Length:	96 in
Screw Load Capacity:	6181 lb Dynamic/65903 lb Static
Series:	Precision Plus
Thread Direction:	Right Hand
Thread Lead:	0.2 in
