5702 GRL

Name: 5702 GRL
Brand: Greenlee
SKU: 5702 GRL
Availability: OutOfStock

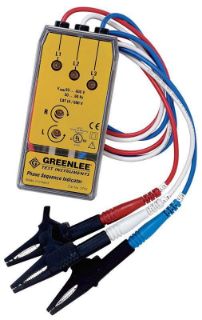

Greenlee® 5702 Phase Sequence Indicator, 190 to 600 VAC, 50 to 60 Hz, Two Neon Lamp

Manufacturer: Greenlee

Manufacturer part number: 5702

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Greenlee®

Description

Before connecting a three-phase motor to a three-phase circuit, it is necessary to match the "legs" or windings of the motor to the phases of the circuit. this ensures that the motor will rotate in the proper direction when power is applied to the circuit. use the 5702 phase sequence indicator to identify the phases of the circuit.

Greenlee® Phase Sequence Indicator, 190 to 600 VAC, 50 to 60 Hz, Safety Rating: CAT III 600 V, Two Neon Lamp Motor Rotation

Application

For use to identify the phases of the circuit

Standards

ARRA Compliant | RoHS Compliant | cULus Recognized

Features

Identifies L1, L2, L3 phases and indicates phase rotation before installation
Clockwise and counterclockwise indication via neon lamps
2 lamps rotational field indication
< 3.5 mA load current
IP 40 protection category
NEDA 1604, JIS 006P or IEC 6F22 9 V battery
Three neon lamp live phase indicator

Specifications

Country of Origin:	CN
Frequency Rating:	50 to 60 Hz Hz
Motor Rotation:	Two Neon Lamp
Safety Rating:	CAT III 600 V
Voltage Rating:	190 to 600 VAC VAC
