570XL-ST TPO

Name: 570XL-ST TPO
Brand: Greenlee
SKU: 570XL-ST TPO
Availability: OutOfStock

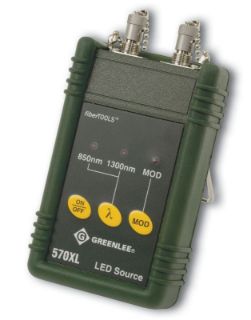

Actual Product May Vary From Image

Product Details

Manufacturer:

Greenlee

Manufacturer part number:

570XL-ST

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Greenlee

Description

850/1300 nm wavelengths. Stable calibrated output.. Easy to use. Continuous wave and modulated output. Fixed connector interface FC, SC or ST. Long battery life - approx. 80 hours. User selectable auto shut-off. Rugged and splash-proof. Economically priced.

Standards

EN61010
EN50081-1: 1992
EN55011, Group 1, Class A EN50082-1: 1992 IEC 801-2, -3, -4

Specifications

Connector interface:	FC, SC Or ST
Country of Origin:	US
Dimensions:	2.800 IN (7.200 CM) X 5.600 IN (14.200 CM) X 1.400 IN (3.500 CM)
Humidity:	0 To 95% Non-Condensing
Max Spectral Width:	55 nm, 150 nm
Measuring Range:	840 mn To 880 nm, 1270 nm To 1345 nm
Modulation Frequency:	270 kHz, 1 kHz And 2 kHz
Power Supply:	Two AA Size 1.5 V Batteries
Stability:	Plus Or Minus 0.05 dB For 1 HR
StorageOperatingTemperature:	-35 To 70°C/-15 To 55°C
Typical Power Output 9125:	<ul><li>-13 dBm, -20 dBm For 100/140 um, -13 dBm, -20 dBm For 62.5/125 um</li><li> -14 dBm, -21 dBm For 50/125 um</li></ul>
Wavelength:	850 nm Center, 1300 nm Center
Weight:	241.000 G (8.500 OZ)
