Actual Product May Vary From Image

5JEM MSG

Name: 5JEM MSG
Brand: Martin Sprocket & Gear
SKU: 5JEM MSG
Price: 19.63 USD
Availability: InStock

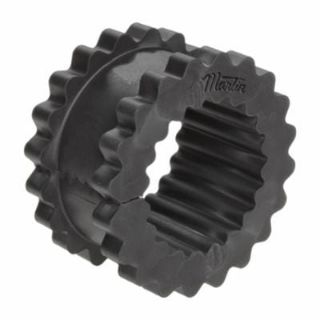

Martin Quadra-Flex® 5JEM One-Piece Coupling Sleeve, 05 Coupling, 1.563 in L, 2.926 in OD, 7600 rpm Max, Rubber

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 5JEM

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
4	2	2
CRUSH BEARINGS & DRIVES - LEXINGTON	CBT - LOUISVILLE
0	0
Loading...

$19.63

Qty:

Product Details

Brand Name

Martin

Type

One-Piece

Description

Martin Quadra-Flex® is a proven design which offers long life, torsional flexibility, ease of installation and withstands misalignment, shock and vibration. TPR, EPDM, Neoprene and Hytrel® sleeves are available in solid, split and semi-split construction.

Martin Quadra-Flex® Coupling Sleeve, One-Piece, 05 Coupling, 1.563 in Length, 2.926 in OD, 240 in-lb Torque, 7600 rpm Maximum, -50 to 275 deg F, Rubber, Black

Features

Sleeves available in four materials: TPR (Thermoplastic Rubber), EPDM, Neoprene and Hytrel
Available split and un-split
Precise machining and processes ensure consistent finish and high quality

Specifications

Country of Origin:	US
Coupling Size:	05
Finish:	Black
Length:	1.563 in
Material:	Rubber
Maximum Speed:	7600 rpm
Outside Diameter:	2.926 in
Temperature Rating:	-50 to 275 deg F
Torque Rating:	240 in-lb
