5V1400 GAT

Name: 5V1400 GAT
Brand: Gates Corporation
SKU: 5V1400 GAT
Price: 138.95 USD
Availability: OutOfStock

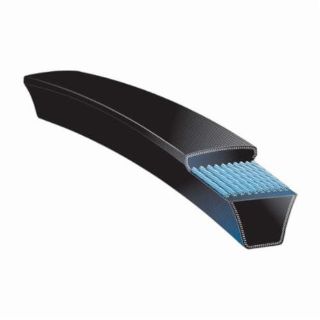

Actual Product May Vary From Image

Product Details

Manufacturer:

Gates Corporation

Manufacturer part number:

5V1400

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$138.95 / EA

Description

Brand Name

Gates®

Type

Banded Heavy Duty

Description

Pioneered by Gates®, these "narrow" cross-sections can transmit up to three times the horsepower of the classical cross-sections (A, B, C and D) in the same amount of drive space.

Gates® Super HC® V-Belt, Banded Heavy Duty, Series: 9334, 5V Section, 5/8 in Top Width, 140 in Outside Length, 35/64 in Thickness, 1 Rib, 7.958 in Diameter Minimum Pulley, -30 to 180 deg F, Chloroprene, Flex-Bonded Polyester Reinforced

Application

For all industrial applications, particularly where space, weight and horsepower capacity are critical

Standards

ARPM/RMA IP-3-2/IP-3-3

Features

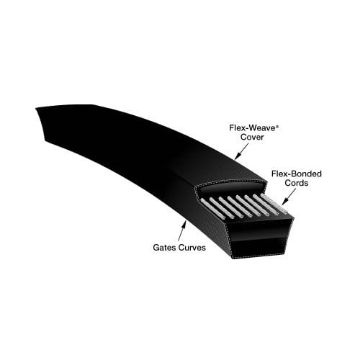

Flex-bonded cords are strongly bonded to the body of the belt resulting in equal load distribution and the absorption of bending stress without cord deterioration
The Flex-Weave® cover is constructed for longer cover life, providing extended protection to the core of the belt from oil, dirt and heat
Gates® curves provide proper cord support and full contact with the sheave groove for uniform loading, uniform wear and increased belt life

Specifications

Country of Origin:	MX
Material:	Chloroprene
Minimum Pulley Diameter:	7.958 in
Number of Ribs:	1
Outside Length:	140 in
Reinforced Material:	Flex-Bonded Polyester
Section Size:	5V
Series:	9334
Temperature Range:	-30 to 180 deg F
Thickness:	35/64 in
Top Width:	5/8 in
