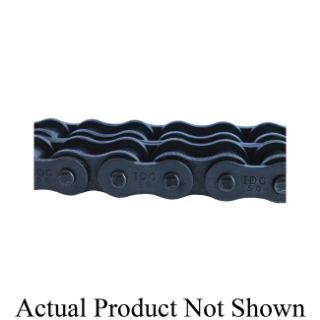

Actual Product May Vary From Image

60 2R AD

Name: 60 2R AD
Brand: IDC-USA
SKU: 60 2R AD
Price: 14.56 USD
Availability: OutOfStock

IDC Select® IDC 60-2R Riveted Roller Chain, 10 ft OAL, 3/4 in Pitch, 0.47 in Dia x 0.49 in W Roller, Carbon Steel

Manufacturer: IDC-USA

Manufacturer part number: IDC 60-2R

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$14.56

Qty:

Product Details

Brand Name

IDC Select®

Type

Riveted

Description

ANSI standard roller chains represent the most common roller chain sold in the market today. IDC Select® roller chain is manufactured in accordance with American National Standards Institute (ANSI) standard roller chains B29.1 standards. IDC Select® roller chain is designed and built to provide maximum strength and wear life. Solid bushings, solid rollers, wide waist link plates and appropriate press fits are just a few of the reasons it outperforms the competition.

IDC Select® Roller Chain, Riveted, 3/4 in Pitch, 0.23 in Pin Diameter, 1.99 in Pin Length, 0.47 in Roller Diameter, 0.49 in Roller Width, 0.71 in Plate Height, 0.1 in Plate Thickness, 2 Strands, 14455 lb Ultimate/18661.74 lb Average Tensile Strength, 10 ft Overall Length, Carbon Steel

Standards

ANSI/ASME B29.1

Specifications

Material:	Carbon Steel
Number of Strands:	2
Overall Length:	10 ft
Pin Diameter:	0.23 in
Pin Length:	1.99 in
Pitch:	3/4 in
Plate Height:	0.71 in
Plate Thickness:	0.1 in
Roller Diameter:	0.47 in
Roller Width:	0.49 in
Tensile Strength:	14455 lb Ultimate/18661.74 lb Average
