6001 ZZ NAC

Product Details

Manufacturer:
Manufacturer part number:
6001ZZEC3
Product Name:
6001 ZZ NAC
CBT Inventory
37
Vendor Inventory
Loading...
CBT - Cincinnati
14
CBT - Springboro
8
CBT - Sidney
5
CBT - LEXINGTON
10
CBT - LOUISVILLE
0
Availability:
Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
$9.94 / EA

Description

Brand Name

NACHI

Description

Single-row deep groove ball bearings are the most common bearing type in the world due to their versatility and performance. These bearings are available in a variety of seal, shield and snap-ring arrangements. Bearings with seals or shields are standardized and already contain the proper amount of grease. Open bearings will require lubrication. These bearings can sustain radial and/or axial loads and because of their simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation.

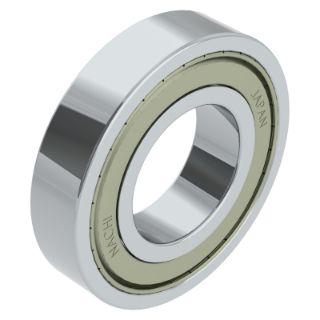

NACHI Deep Groove Ball Bearing, Series: 6000, 12 mm Bore, 28 mm OD, 1 Rows, 8 mm Width, Double Shield Closure, 5100 N Dynamic/2390 N Static Load, Steel Bearing, Stamped Steel Cage, 28000 rpm Grease/32000 rpm Oil Maximum, 250 deg F

Application

Electric Motors, Automotive Alternators, Automotive Starters, Compressors, Blowers and Transmissions

Features

  • Excellent high speed capability
  • Good radial load capacity
  • Good axial load capacity in both directions
  • Low torque requirements during startup and operation
  • Low noise
  • Little/no maintenance required
  • Longer life - adopted NACHI original seal design to prevent contamination and grease leakage, contains special grease for wider temperature ranges and longer life
  • Smooth and quiet operation - the precision level of our bearing components has been enhanced to ensure smooth and quiet operation

Specifications

Bearing Material:Steel
Bore Diameter:12 mm
Cage Material:Stamped Steel
Closure Type:Double Shield
Country of Origin:JP
Load Capacity:5100 N Dynamic/2390 N Static
Maximum Speed:28000 rpm Grease/32000 rpm Oil
Number of Rows:1
Outside Diameter:28 mm
Series:6000
Temperature Rating:250 deg F
Width:8 mm

Products Specifications

Brand Name
Nachi
