6004 2NSENR NAC

Product Details

Manufacturer:
Manufacturer part number:
6004-2NSE9NR
Product Name:
6004 2NSENR NAC
CBT Inventory
4
Vendor Inventory
Loading...
CBT - Cincinnati
2
CBT - Springboro
0
CBT - Sidney
2
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
$18.83 / EA

Description

Brand Name

NACHI

Description

Single-row deep groove ball bearings are the most common bearing type in the world due to their versatility and performance. These bearings are available in a variety of seal, shield and snap-ring arrangements. Bearings with seals or shields are standardized and already contain the proper amount of grease. Open bearings will require lubrication. These bearings can sustain radial and/or axial loads and because of their simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation.

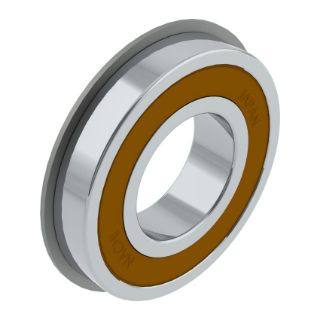

NACHI Deep Groove Ball Bearing, Series: 6000, 20 mm Bore, 42 mm OD, 1 Rows, 12 mm Width, Double Seal Closure, 9400 N Dynamic/5000 N Static Load, Steel Bearing, Buna-N Seal, Stamped Steel Cage, 11000 rpm Grease/21000 rpm Oil Maximum, 250 deg F

Application

Electric Motors, Automotive Alternators, Automotive Starters, Compressors, Blowers and Transmissions

Features

  • Excellent high speed capability
  • Good radial load capacity
  • Good axial load capacity in both directions
  • Low torque requirements during startup and operation
  • Low noise
  • Little/no maintenance required
  • Longer life - adopted NACHI original seal design to prevent contamination and grease leakage, contains special grease for wider temperature ranges and longer life
  • Smooth and quiet operation - the precision level of our bearing components has been enhanced to ensure smooth and quiet operation
  • Buna-N rubber light contact seals on both sides for 10 to 50 mm bore
  • Snap ring and groove

Specifications

Bearing Material:Steel
Bore Diameter:20 mm
Cage Material:Stamped Steel
Closure Type:Double Seal
Country of Origin:JP
Load Capacity:9400 N Dynamic/5000 N Static
Maximum Speed:11000 rpm Grease/21000 rpm Oil
Number of Rows:1
Outside Diameter:42 mm
Seal Material:Buna-N
Series:6000
Temperature Rating:250 deg F
Width:12 mm

Products Specifications

Brand Name
Nachi
