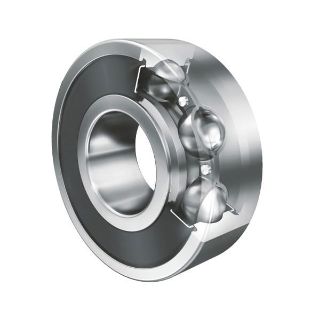

Picture of 6010-2RSR-L038 FAG
Actual Product May Vary From Image

6010-2RSR-L038 FAG

FAG 6010-2RSR-L038 Extra Light Series Deep Groove Ball Bearing, 50 mm Dia Bore, 80 mm OD, 1 Rows, 16 mm W, 22000 N Load
Manufacturer: INA
Manufacturer part number: 6010-2RSR-L038
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 4
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$88.34

Product Details

Brand Name

FAG

Description

Deep groove ball bearings are versatile, self-retaining bearings with solid outer rings, inner rings and ball and cage assemblies. These bearings with their simple design, high resistance and low-maintenance, are available in single-row and double-row designs, as well as sealed and unsealed. Due to the manufacturing processes used, open bearings can have turned recesses in the outer ring for seals or shields.
FAG Deep Groove Ball Bearing, Series: Extra Light Series, 50 mm Bore, 80 mm OD, 1 Rows, 16 mm Width, Double Seal Closure, 22000 N Load, Elastomer Seal, Sheet Steel Cage, 4450 rpm Maximum, -30 to 120 deg C

Application

For compensating static angular misalignments to a very limited extent

Features

  • Bearing arrangement must be operated with very low friction
  • High demands are made on the sealing of the bearing, without increasing heat generation
  • Bearing position is to be designed particularly economically
  • Contact lip seals on both sides
  • 22000 N dynamic/15800 N static

Specifications

Bore Diameter:50 mm
Cage Material:Sheet Steel
Closure Type:Double Seal
Country of Origin:KR
Load Capacity:22000 N
Maximum Speed:4450 rpm
Number of Rows:1
Outside Diameter:80 mm
Seal Material:Elastomer
Series:Extra Light Series
Temperature Rating:-30 to 120 deg C
Width:16 mm
