60W33 WOO

Name: 60W33 WOO
Brand: Molex/Woodhead
SKU: 60W33 WOO
Price: 103.02 USD
Availability: InStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Molex/Woodhead

Manufacturer part number:

60W33

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 7 days

Estimated dates are contingent upon manufacturer stock.

$103.02 / EA

Description

Brand Name

Woodhead®

Description

Woodhead Watertight wet-location wiring devices are rated for high-pressure hose-down application upto 1,000 psi, the benchmark for the industry. The only devices made of NEo-TEX® Paracril OZO rubber, yields ultimate performance within a wide temperature range, around many oils, chemicals and abrasive conditions. Additional features include: unique multiple ring seals that lock snugly protecting against moisture and contaminants; sturdy compression type cord grips that provide high pull-out strength; and a protective-closure cap that seals the connector when it is not in use. Woodhead Watertight products are time-tested devices that professionals demand.

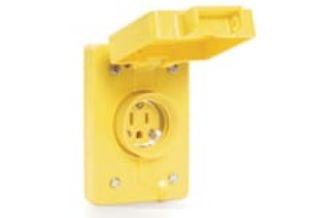

Woodhead® Watertite® Female Receptacle, Series: 130146, 125 VAC, 20 A, 2 Pole, 3 Wires, NEMA 5-20 Rating, IP67 Enclosure, -40 to 75 deg C, Screw Terminal, Rubber, Yellow

Application

Breweries, Dairies, Food and Beverage, Wastewater Treatment and Water Treatment and Wet Locations Applications

Standards

CSA LR6837 | Meets NSF/ANSI/3-A 14159-1 Standard | UL E68122

Features

Multiple seal plug/connector interface keeps out contaminants, resists vapor and water from high pressure wash down upto 1000 psi
Color coded 1/4 in terminal screws preset in open position, ready to wire
Wire screw terminals are tri-drive to be used with straight blade, Phillips® and square drive screw drivers
Floating blade construction provides self-alignment and a better mechanical and electrical connection minimizing wear and heat generation
Transparent wiring guide to verify all wire strands are in place before securing wire
Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
Three piece strain relief seals cord without damaging the cord
F2 body, 1/2 in cord grip
Nickel plated brass plug blades and connector contacts
NEoTEX® Paracril OZO rubber outer housing and grommet
Stainless steel face screw
Nylon face insert
Brass wire saddle clamp
Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
Lexan receptacle cover plate and closure caps

Specifications

Amperage Rating:	20 A
Color:	Yellow
Country of Origin:	MX
Enclosure:	IP67
Material:	Rubber
NEMA Rating:	NEMA 5-20
Number of Poles:	2
Number of Wires:	3
Series:	130146
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Screw
Voltage Rating:	125 VAC
