6210 NAC

Product Details

Manufacturer:
Manufacturer part number:
6210C3
Product Name:
6210 NAC
CBT Inventory
2
Vendor Inventory
Loading...
CBT - Cincinnati
2
CBT - Springboro
0
CBT - Sidney
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
$42.56 / EA

Description

Brand Name

NACHI

Description

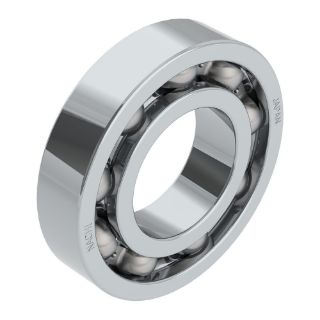

Single-row deep groove ball bearings are the most common bearing type in the world due to their versatility and performance. These bearings are available in a variety of seal, shield and snap-ring arrangements. Bearings with seals or shields are standardized and already contain the proper amount of grease. Open bearings will require lubrication. These bearings can sustain radial and/or axial loads and because of their simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation.
NACHI Deep Groove Ball Bearing, Series: 6200, 50 mm Bore, 90 mm OD, 1 Row, 20 mm Width, Open Closure, 35000 N Dynamic/23200 N Static Load, Steel Bearing, Stamped Steel Cage, 7100 rpm Grease/8600 rpm Oil Maximum, 250 deg F

Application

Electric Motors, Automotive Alternators, Automotive Starters, Compressors, Blowers and Transmissions

Features

  • Excellent high speed capability
  • Good radial load capacity
  • Good axial load capacity in both directions
  • Low torque requirements during startup and operation
  • Low noise
  • Little/no maintenance required
  • Longer life - adopted NACHI original seal design to prevent contamination and grease leakage, contains special grease for wider temperature ranges and longer life
  • Smooth and quiet operation - the precision level of our bearing components has been enhanced to ensure smooth and quiet operation
  • Internal clearance

Specifications

Bearing Material:Steel
Bore Diameter:50 mm
Cage Material:Stamped Steel
Closure Type:Open
Country of Origin:JP
Load Capacity:35000 N Dynamic/23200 N Static
Maximum Speed:7100 rpm Grease/8600 rpm Oil
Number of Rows:1
Outside Diameter:90 mm
Series:6200
Temperature Rating:250 deg F
Width:20 mm

Products Specifications

Bore Size
50 mm
Brand Name
Nachi
Outside Diameter
90 mm
Width
20 mm
