63-23-230-8 SHD

Name: 63-23-230-8 SHD
Brand: SolaHD (Emerson)
SKU: 63-23-230-8 SHD
Price: 4,475.21 USD
Availability: InStock

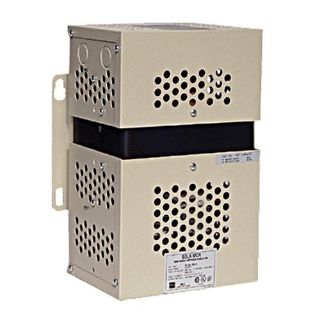

Actual Product May Vary From Image

Product Details

Manufacturer:

SolaHD (Emerson)

Manufacturer part number:

63-23-230-8

Product Name:

63-23-230-8 SHD

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$4,475.21 / EA

Description

Type

CVS Hardwired Series - Constant Voltage Transformers

Description

Features:120 DB Common Mode, 60 DB Transverse Mode Noise Attenuation, Galvanic Isolation, Standard:UL (CANADA AND US) , UL 1012, CSA, ANSI/IEEE C62.41, Wattage:3000VA, Input Voltage: 120/208/240/480, Output Voltage: 120/208/240

Application

Industrial Automation and Control Equipment Power PLCs, Broadcast Equipment, Photo Processing Equipment

Standards

UL 1012, CSA, ANSI/IEEE C62.41

Features

Superior voltage regulation, Surge protection tested to ANSI/IEEE C62.41. Class A & B waveform, Harmonic filtering, Hardwired, Acts as step-up/step-down transformer, Galvanic isolation, Noise attenuation 40 dB

Specifications

Amperage Rating:	7500 VA
Country of Origin:	US
Efficiency:	Up to 92% at Full Load PCT
Frequency Rating:	60 HZ
Height:	19
Input:	120, 208, 240, 480
Length:	9
Mounting:	Bracket
Noise Level:	35 to 65
Number of Taps:	2
Operating Temperature:	-20 to 50 degrees C
Output Power:	120, 208, 240
Phase:	1
Primary Voltage:	240/480 VAC
Regulation:	+/-1 PCT
Secondary Voltage:	120/240 VAC
Size:	27 High x 25 Wide x 9 Deep IN
Style:	1
Width:	13
