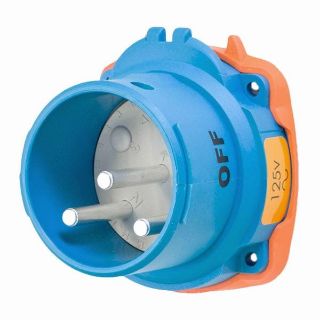

Actual Product May Vary From Image

63-38075 MEL

Name: 63-38075 MEL
Brand: Meltric
SKU: 63-38075 MEL
Price: 102.07 USD
Availability: OutOfStock

MELTRIC DECONTACTOR™ 63-38075 DSN30 Switch Rated Male Inlet With Neutral and Ground, 110/125/220/250 VAC, 30 A, 3 Poles, 3 Wires, Blue

Manufacturer: Meltric

Manufacturer part number: 63-38075

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$102.07

Qty:

Product Details

Brand Name

MELTRIC

Type

Switch Rated

Description

DSN Series products are switch and hp rated for quick, safe equipment change outs. DSN's are ideal for wet environments since they offer type 4X water tightness as soon as the plug is latched to the receptacle or as soon as the receptacle lid is closed.

MELTRIC DECONTACTOR™ Male Inlet, Switch Rated, Series: DSN30, 110/125/220/250 VAC, 30 A, 60 Hz Frequency, 3 Pole, 3 Wires, NEMA 4X, IP66/IP67/IP69K Enclosure, -40 to 140 deg F, Screw Terminal, Polyester, Blue, 2.64 in Dia x 1.97 in L Dimensions

Application

Wet/Washdown Environments, Plug and Play Electrical Connection Applications

Standards

Features

Switch and horsepower rated (AC only
100 kA short circuit rated
Compact, lightweight design
Up to 4 auxiliary contacts
Fiberglass reinforced thermoplastic polyester material offers great resistance to impact, corrosion and harsh environmental conditions
Solid silver nickel contact surfaces provide superior conductivity, durability and corrosion resistance
14 to 8 AWG wire
1 hp at 120 VAC, 3 hp at 240 VAC 1-phase, 5 hp at 208/240 VAC, 10 hp at 480 VAC, 15 hp at 600 VAC 3-phase horsepower rating

Specifications

Amperage Rating:	30 A
Color:	Blue
Country of Origin:	US
Dimensions:	2.64 in Dia x 1.97 in L
Enclosure:	IP66/IP67/IP69K
Frequency Rating:	60 Hz
Material:	Polyester
NEMA Rating:	NEMA 4X
Number of Poles:	3
Number of Wires:	3
Series:	DSN30
Temperature Rating:	-40 to 140 deg F
Terminal Type:	Screw
Voltage Rating:	110/125/220/250 VAC

Resources

Video
