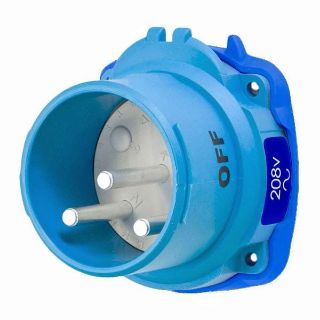

Picture of 63-38162 MEL
Actual Product May Vary From Image

63-38162 MEL

MELTRIC DECONTACTOR™ 63-38162 DSN30 Switch Rated Male Inlet With Ground, 120/127/208/220 VAC, 30 A, 2 Poles, 3 Wires, Blue
Manufacturer: Meltric
Manufacturer part number: 63-38162
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
2 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$102.07

Product Details

Brand Name

MELTRIC

Type

Switch Rated

Description

DSN Series products are switch and hp rated for quick, safe equipment change outs. DSN's are ideal for wet environments since they offer type 4X water tightness as soon as the plug is latched to the receptacle or as soon as the receptacle lid is closed.
MELTRIC DECONTACTOR™ Male Inlet, Switch Rated, Series: DSN30, 120/127/208/220 VAC, 30 A, 1 hp, 5 hp, 60 Hz Frequency, 2 Pole, 3 Wires, NEMA 4X, IP66/IP67/IP69K Enclosure, -40 to 140 deg F, Screw Terminal, Polyester, Blue, 2.64 in Dia x 1.97 in L Dimensions

Application

Wet/Washdown Environments, Plug and Play Electrical Connection Applications

Standards

ARRA Compliant | Buy American Act Compliant | RoHS Compliant | UL 2682 | UL 1682 | CSA 182.1 | CE Marked | NOM Certified | IEC Certified | NFPA 70E

Features

  • Switch and horsepower rated (AC only
  • 100 kA short circuit rated
  • Compact, lightweight design
  • Up to 4 auxiliary contacts
  • Fiberglass reinforced thermoplastic polyester material offers great resistance to impact, corrosion and harsh environmental conditions
  • Solid silver nickel contact surfaces provide superior conductivity, durability and corrosion resistance
  • 14 to 8 AWG wire
  • 1 hp at 120 VAC, 3 hp at 240 VAC 1-phase, 5 hp at 208/240 VAC, 10 hp at 480 VAC, 15 hp at 600 VAC 3-phase horsepower rating

Specifications

Amperage Rating:30 A
Color:Blue
Country of Origin:US
Dimensions:2.64 in Dia x 1.97 in L
Enclosure:IP66/IP67/IP69K
Frequency Rating:60 Hz
Horsepower:1 hp, 5 hp
Material:Polyester
NEMA Rating:NEMA 4X
Number of Poles:2
Number of Wires:3
Series:DSN30
Temperature Rating:-40 to 140 deg F
Terminal Type:Screw
Voltage Rating:120/127/208/220 VAC
