Home / 63-64043 MEL

63-64043 MEL

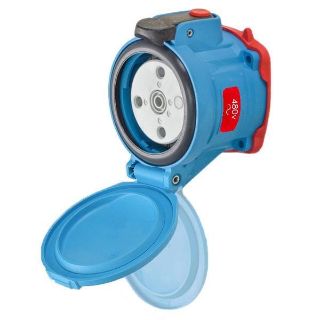

Picture of 63-64043 MEL
Actual Product May Vary From Image

Product Details

Manufacturer:
Meltric
Manufacturer part number:
63-64043
product.name:
63-64043 MEL
CBT Inventory
2
Vendor Inventory
Loading...
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
$496.06 / EA

Description

Brand Name

MELTRIC

Type

Switch Rated

Description

DSN series products are switch and hp rated for quick, safe equipment change outs. DSN's are ideal for wet environments since they offer Type 4X water tightness as soon as the plug is latched to the receptacle or as soon as the receptacle lid is closed.
MELTRIC DECONTACTOR™ Female Receptacle, Switch Rated, Series: DSN60, 255/277/440/480 VAC, 60 A, 20 hp, 60 Hz Frequency, 3 Pole, 4 Wires, NEMA 4X NEMA Rating, IP66/IP67/IP69K Enclosure, -40 to 140 deg F, Screw Terminal, Polyester, Blue, 4.3 in H x 3.64 in D Dimensions

Application

Wet or Washdown Environments, Plug and Play Electrical Connections

Standards

ARRA Compliant | Buy American Act Compliant | RoHS Compliant | UL 2682/1682 | CSA 182.1 | CE Certified | IEC Certified

Features

  • Switch and hp rated (AC only)
  • 100 kA short circuit rated withstand testing was performed with RK1 current limiting fuses sized at 400 PEC of the highest full load motor ampacity associated with the devices hp rating
  • Compact, lightweight design
  • Up to 4 auxiliary contacts
  • Spring assisted screw terminals patented design assures ''tighten and forget'' confidence
  • Spring loaded butt-style contacts ensures optimal contact force and superior electrical performance over thousands of operations
  • Lid provides additional protection from harsh environments
  • OFF button press to de-energize and provides push button circuit disconnection
  • Dead front/safety shutter assures safety by preventing user access to live parts
  • 2 hp at 120 VAC, 3 hp at 240 VAC 1-phase, 7-1/2 hp at 208/240 VAC, 20 hp at 480/600 VAC 3-phase horsepower rating

Specifications

Amperage Rating:60 A
Color:Blue
Country of Origin:US
Dimensions:4.3 in H x 3.64 in D
Enclosure:IP66/IP67/IP69K
Frequency Rating:60 Hz
Horsepower:20 hp
Material:Polyester
NEMA Rating:NEMA 4X
Number of Poles:3
Number of Wires:4
Series:DSN60
Temperature Rating:-40 to 140 deg F
Terminal Type:Screw
Voltage Rating:255/277/440/480 VAC
